Product Description



UCC 80K-4

Series: Single Phase Motors - Start Capacitor
Motor type: UCC 80K-4
Poles: 4
Output: 0.55 kW / 0.75 Cv
Speed (min-1): 1400 RPM
Frequency: 50 Hz
Voltage: 230 V
Current: 4.00 A
Temperature rise Class: B
Insulation class: F
Weight: 9.1 Kg
Power factor (Cos Ø): 0.92
Efficiency 100%: 68.0 %
Torque: 3.75 N.m
Tstarting/Tnominal: 2.5
Istarting/Inominal: 5.3
Tmaximum/Tnominal: 1.8
Bearing DE: 6204 2Z C3
Bearing NDE: 6204 2Z C3

Specifications

Power Rating
0.55kW
Motor Speed (Poles)
4 POLE - 1500 RPM
Frame Size
IEC 80
Shaft Size
19mm Diameter
Motor Type
Cap/Cap - High Starting Torque

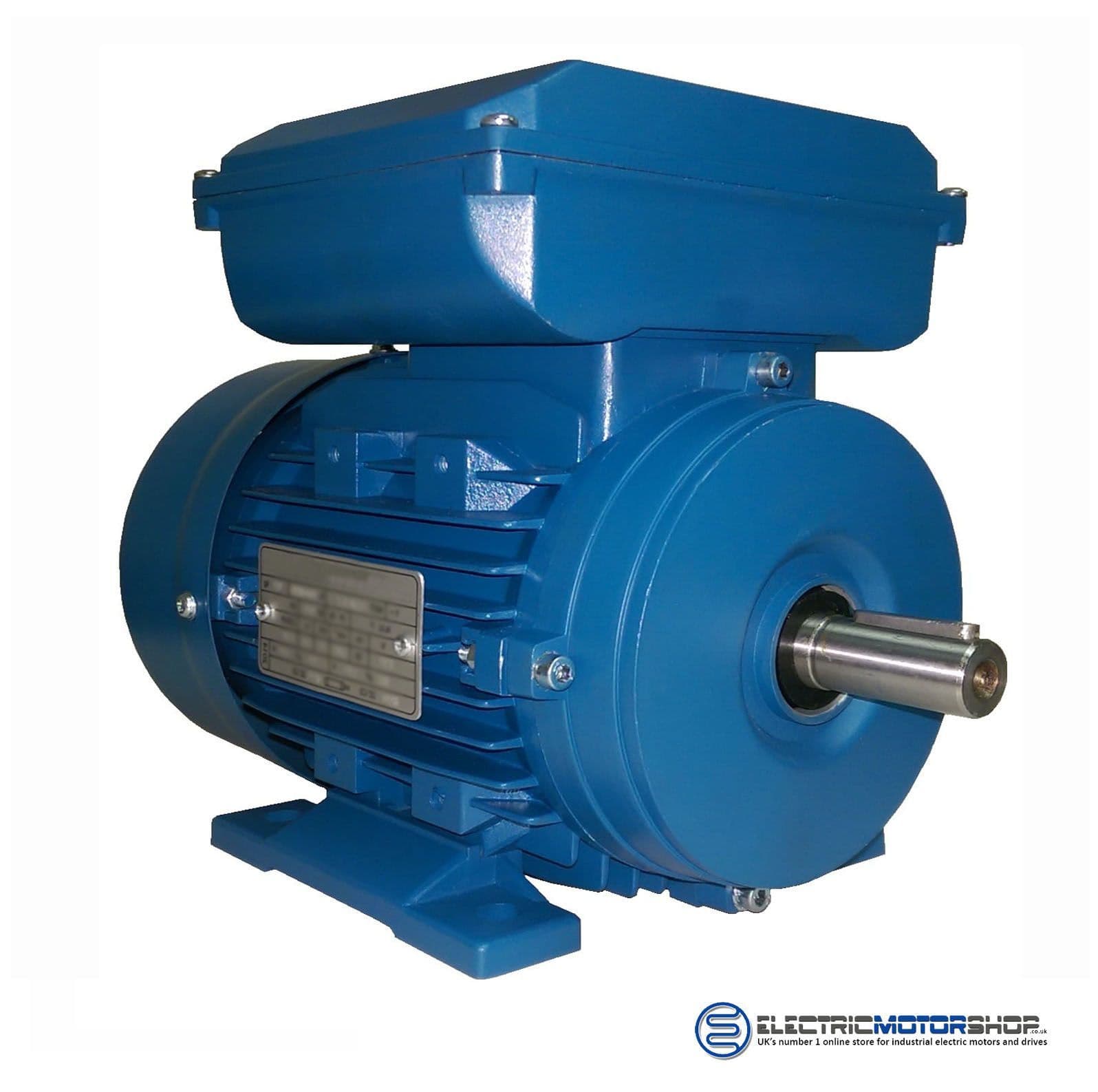

Universal UCC 80K-4 0.55kW 4 Pole 230/1/50Hz B3 Foot Mtd UCC80K-4
