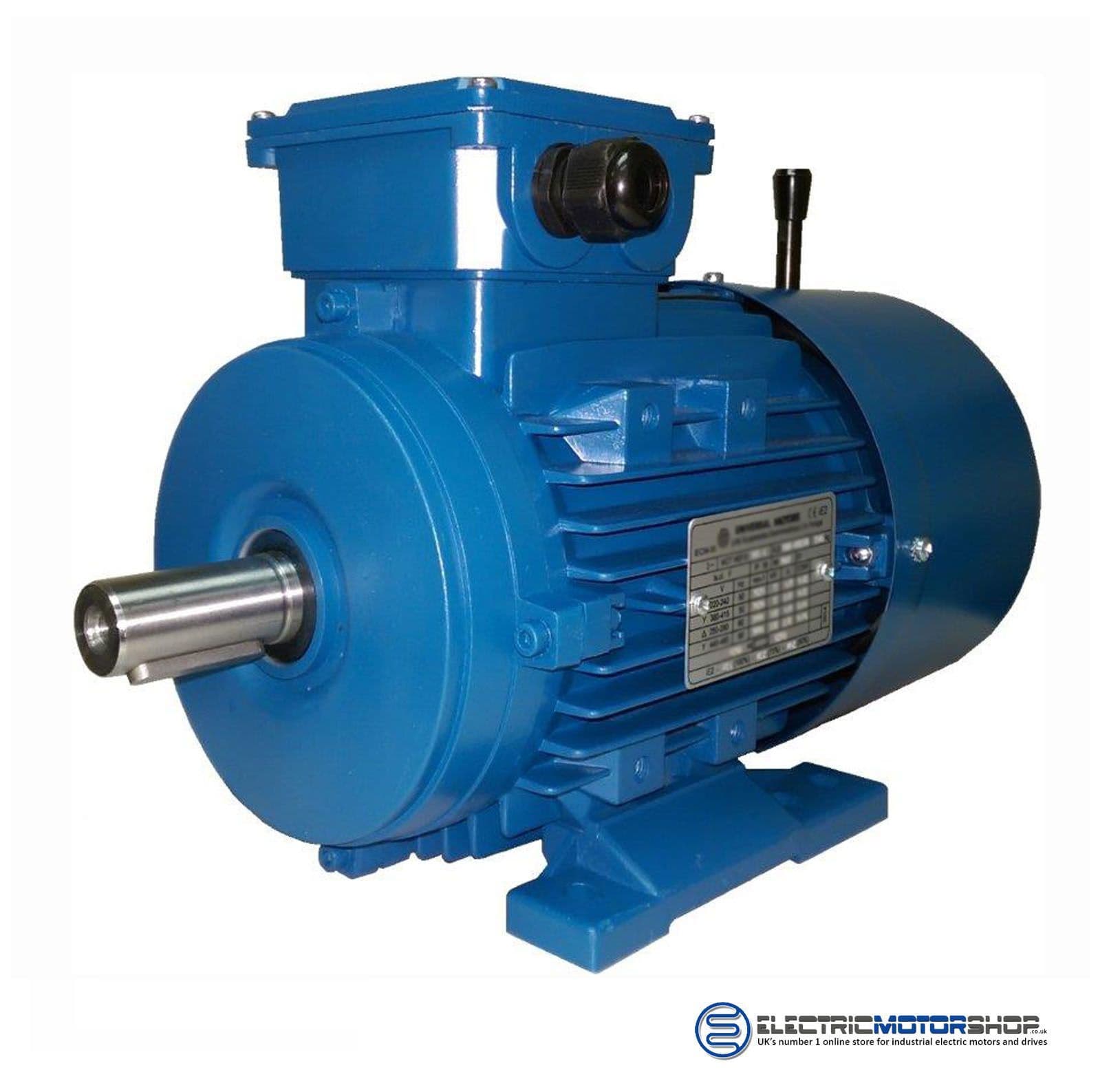

Universal PEF31-90S-4 1.1kW 4 Pole 415/3/50Hz Brake Motor PEF31 90 S 4

Product Description

*Directly replaces old HEF31 90 S1 4 model*

PEF31-90S-4, PEF31 90S 4, PEF3190S4



Series: Three Phase Electric Brake Motor
Motor type: PEF31-90S-4
Poles: 4
Output: 1.1 kW / 1.5 Cv
Speed (min-1): 1420 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 2.50 A
Temperature rise Class: B
Insulation class: F
Weight: 14.5 Kg
Power factor (Cos Ø): 0.78
Efficiency IE3 Premium Efficiency
Noise: 61 Db(A)
Torque: 7.4 N.m
Tstarting/Tnominal: 3.8
Istarting/Inominal: 6.7
Tmaximum/Tnominal: 2.6
Brake AC: AC4
Torque Brake AC: 20 N.m
Brake DC: REB05-10
Torque Brake DC: 16 N.m
Bearing DE: 6205 2Z C3
Bearing NDE: 6204 2Z C3

Specifications

Power Rating
1.1kW
Motor Speed (Poles)
1500 RPM - 4 POLE
Frame Size
IEC 90S
Shaft Size
24mm

Universal PEF31-90S-4 1.1kW 4 Pole 415/3/50Hz Brake Motor PEF31 90 S 4
