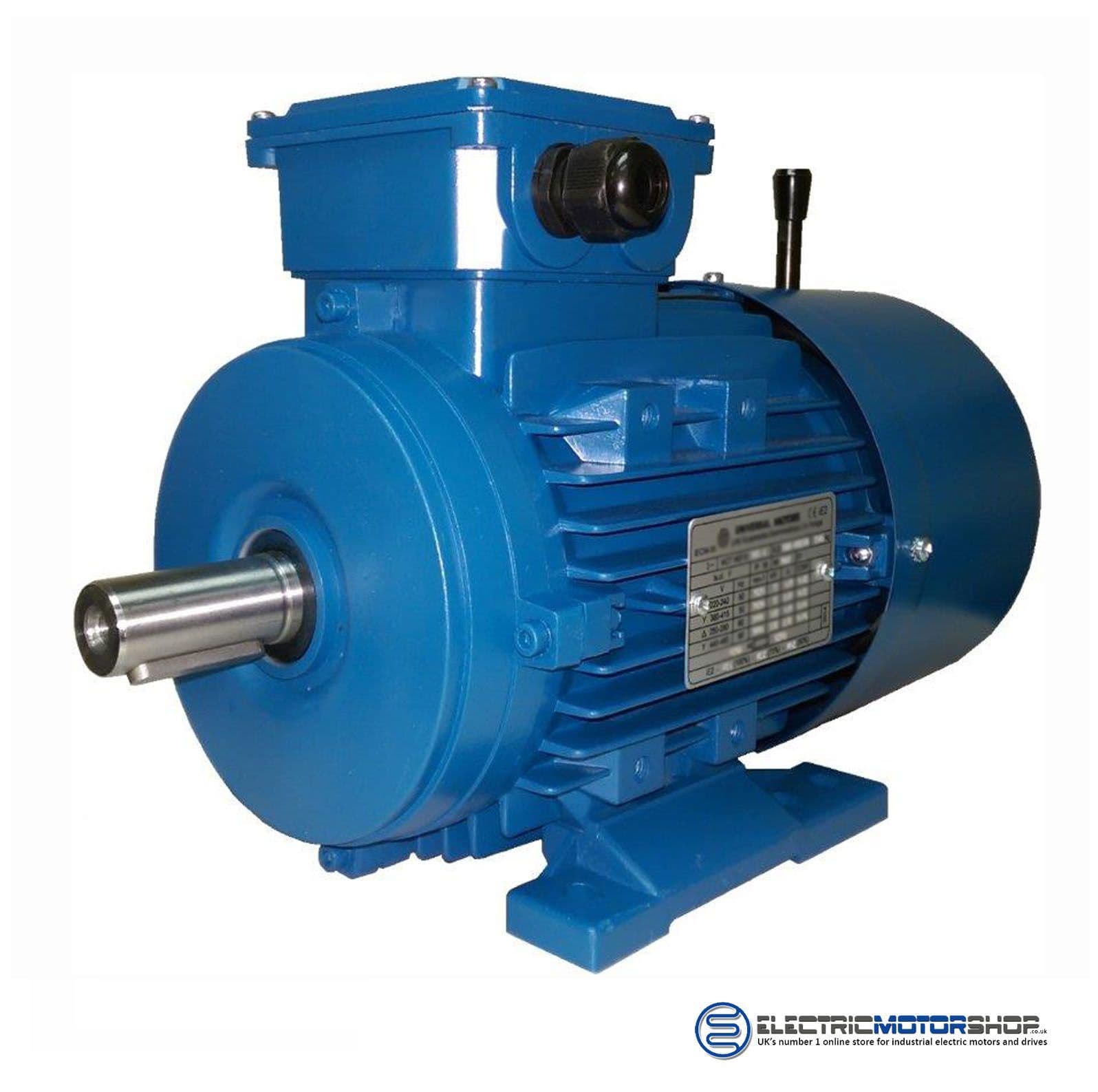

Universal PEF31-90S-2 1.5kW 2 Pole 415/3/50Hz Brake Motor PEF31 90S 2

Product Description

*Directly replaces old HEF31 90 S1 2 model*

PEF31-90S-2, PEF31 90S 2, PEF3190S2



Series: Three Phase Electric Brake Motor
Motor type: PEF31-90S-2
Poles: 2
Output: 1.5 kW / 2 Cv
Speed (min-1): 2850 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 3.20 A
Temperature rise Class: B
Insulation class: F
Weight: 13.1 Kg
Power factor (Cos Ø): 0.83
Efficiency  IE3 Premium Efficiency
Noise: 72 Db(A)
Torque: 5.0 N.m
Tstarting/Tnominal: 3.5
Istarting/Inominal: 6.9
Tmaximum/Tnominal: 3.6
Brake AC: AC4
Torque Brake AC: 20 N.m
Brake DC: REB05-10
Torque Brake DC: 16 N.m
Bearing DE: 6205 2Z C3
Bearing NDE: 6204 2Z C3

Specifications

Power Rating
1.5kW
Motor Speed (Poles)
3000 RPM - 2 POLE
Frame Size
IEC 90S
Shaft Size
24mm

Universal PEF31-90S-2 1.5kW 2 Pole 415/3/50Hz Brake Motor PEF31 90S 2
