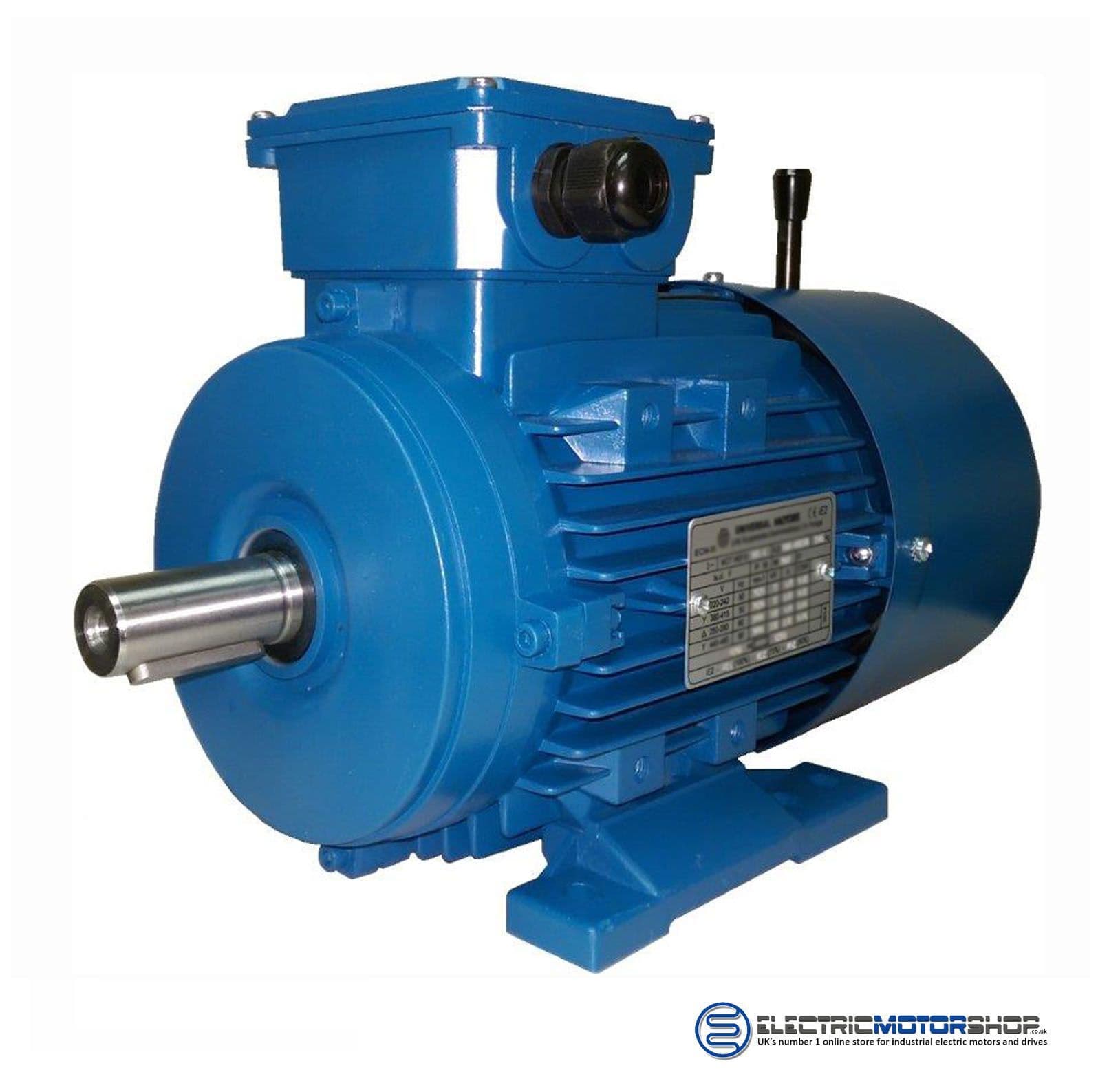

Universal PEF31-90L-4 1.5kW 4 Pole 415/3/50Hz Brake Motor PEF31 90L 4

Product Description

*Directly replaces old HEF31 90 L1 4 model*

PEF31-90L-4, PEF31 90L 4, PEF3190L4



Series: Three Phase Electric Brake Motor
Motor type: PEF31-90L-4
Poles: 4
Output: 1.5 kW / 2 Cv
Speed (min-1): 1420 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 3.31 A
Temperature rise Class: B
Insulation class: F
Weight: 17.6 Kg
Power factor (Cos Ø): 0.79
Efficiency IE3 Premium Efficiency
Noise: 61 Db(A)
Torque: 10.1 N.m
Tstarting/Tnominal: 4.0
Istarting/Inominal: 7.2
Tmaximum/Tnominal: 2.7
Brake AC: AC4
Torque Brake AC: 20 N.m
Brake DC: REB05-10
Torque Brake DC: 16 N.m
Bearing DE: 6205 2Z C3
Bearing NDE: 6204 2Z C3

Specifications

Power Rating
1.5kW
Motor Speed (Poles)
1500 RPM - 4 POLE
Frame Size
IEC 90L
Shaft Size
24mm

Universal PEF31-90L-4 1.5kW 4 Pole 415/3/50Hz Brake Motor PEF31 90L 4
