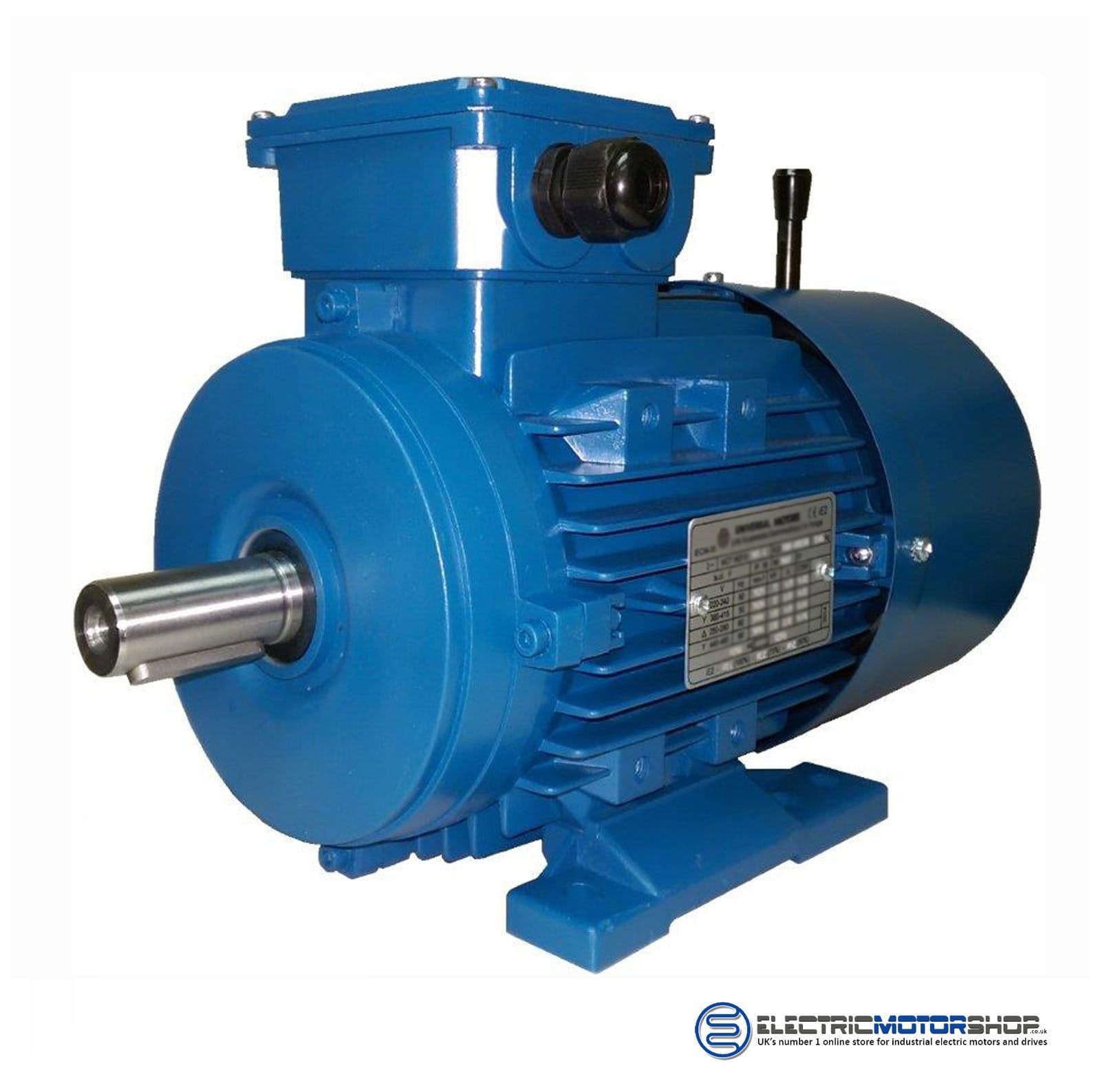

Universal PEF31-90L-2 2.2kW 2 Pole 415/3/50Hz Brake Motor PEF31 90L 2

Product Description

*Directly replaces old HEF31 90 L1 2 model*

PEF31-90L-2, PEF31 90L 2, PEF3190L2

          ​​​​​​​

Series: Three Phase Electric Brake Motor
Motor type: PEF31-90L-2
Poles: 2
Output: 2.2 kW / 3 Cv
Speed (min-1): 2860 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 4.54 A
Temperature rise Class: B
Insulation class: F
Weight: 15.0 Kg
Power factor (Cos Ø): 0.84
Efficiency IE3 Premium Efficiency
Noise: 72 Db(A)
Torque: 7.3 N.m
Tstarting/Tnominal: 4.1
Istarting/Inominal: 7.9
Tmaximum/Tnominal: 4.1
Brake AC: AC4
Torque Brake AC: 20 N.m
Brake DC: REB05-10
Torque Brake DC: 16 N.m
Bearing DE: 6205 2Z C3
Bearing NDE: 6204 2Z C3

Specifications

Power Rating
2.2kW
Motor Speed (Poles)
3000 RPM - 2 POLE
Frame Size
IEC 90L
Shaft Size
24mm
