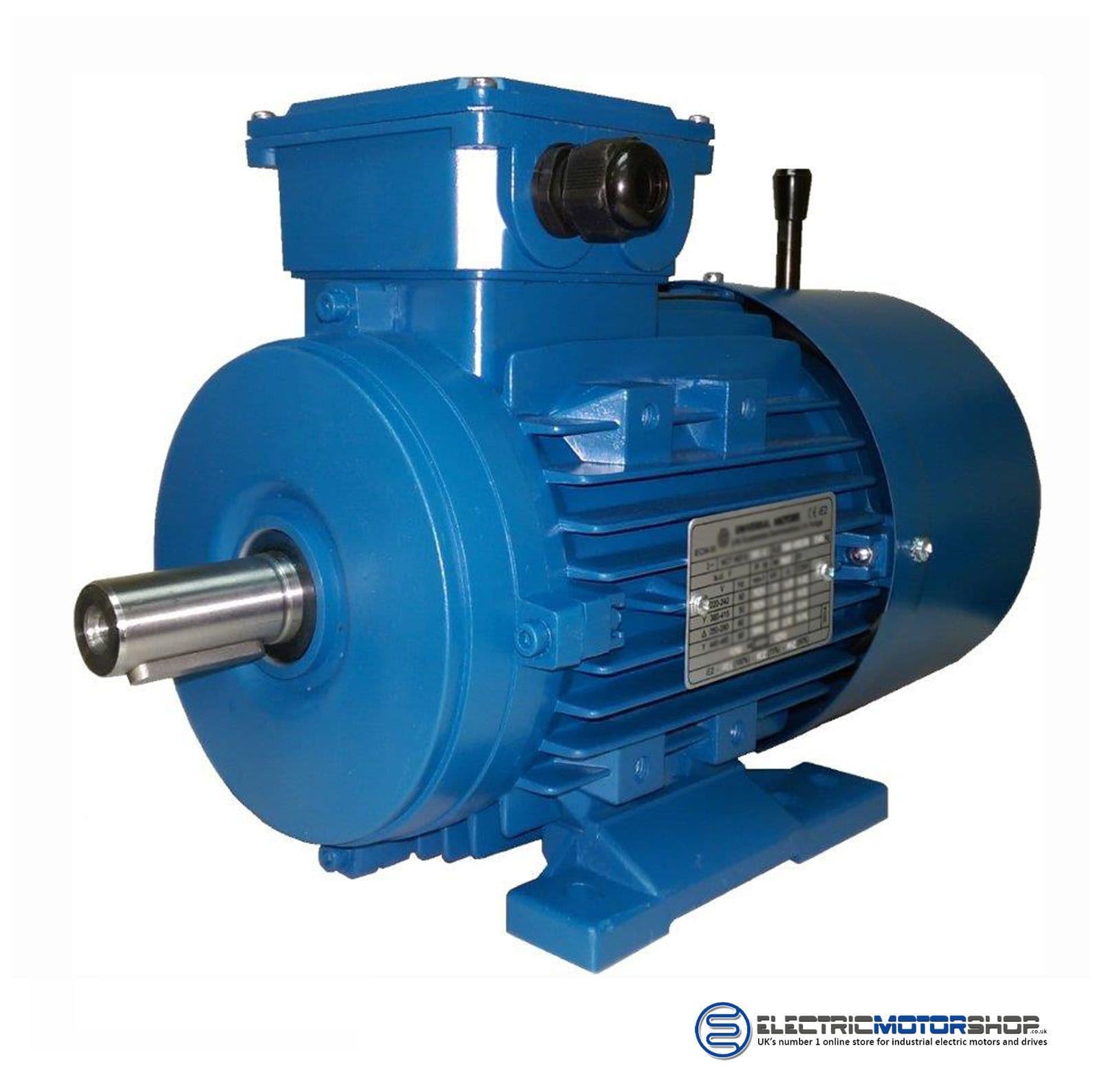

Universal PEF31-80G-2 1.1kW 2 Pole 415/3/50Hz Brake Motor PEF31 80 G 2

Product Description

*Directly replaces old HEF31 80 M2 2 model*

PEF31-80G-2, PEF31 80G 2, PEF3180G2



Series: Three Phase Electric Brake Motor
Motor type: PEF31-80G-2
Poles: 2
Output: 1.1 kW / 1.5 Cv
Speed (min-1): 2850 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 2.42 A
Temperature rise Class: B
Insulation class: F
Weight: 10.5 Kg
Power factor (Cos Ø): 0.82
Efficiency IE3 Premium Efficiency
Noise: 67 Db(A)
Torque: 3.7 N.m
Tstarting/Tnominal: 3.5
Istarting/Inominal: 6.8
Tmaximum/Tnominal: 3.6
Brake AC: AC3
Torque Brake AC: 15 N.m
Brake DC: REB05-08
Torque Brake DC: 8 N.m
Bearing DE: 6204 2Z C3
Bearing NDE: 6204 2Z C3

Specifications

Power Rating
1.1kW
Motor Speed (Poles)
3000 RPM - 2 POLE
Frame Size
IEC 80
Shaft Size
19mm

Universal PEF31-80G-2 1.1kW 2 Pole 415/3/50Hz Brake Motor PEF31 80 G 2
