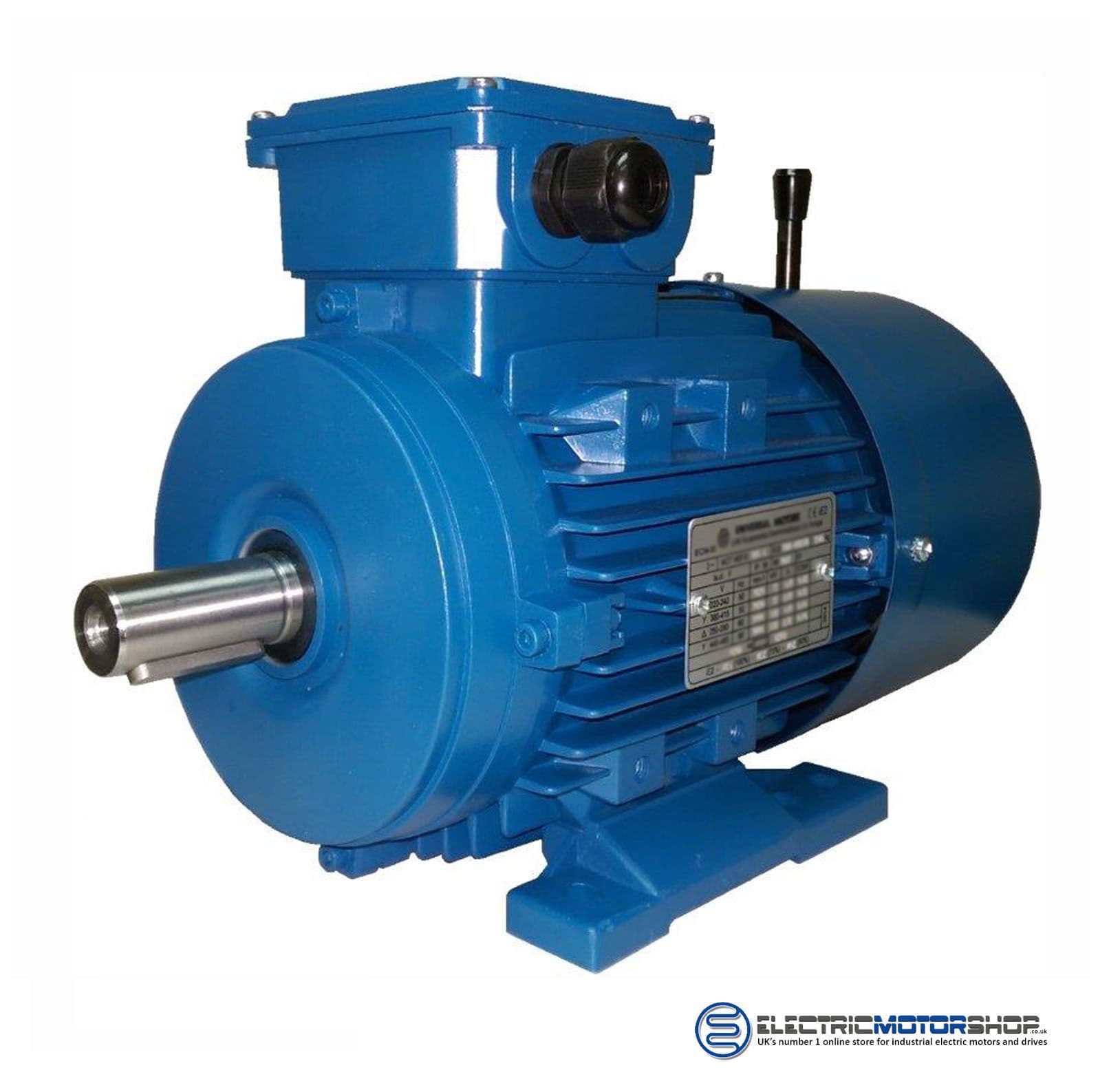

Universal PEF31-112M-2 4.0kW 2 Pole 415/3/50Hz Brake Motor PEF31 112M 2

Product Description

*Directly replaces old HEF31 112 M1 2 model*

PEF31-112M-2, PEF31 112M 2, PEF31112M2



Series: Three Phase Electric Brake Motor
Motor type: PEF31-112M-2
Poles: 2
Output: 4 kW / 5.5 Cv
Speed (min-1): 2890 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 7.54 A
Temperature rise Class: B
Insulation class: F
Weight: 30.8 Kg
Power factor (Cos Ø): 0.89
Efficiency IE3 Premium Efficiency
Noise: 77 Db(A)
Torque: 13.2 N.m
Tstarting/Tnominal: 2.7
Istarting/Inominal: 7.5
Tmaximum/Tnominal: 3.3
Brake AC: AC6
Torque Brake AC: 60 N.m
Brake DC: REB05-14
Torque Brake DC: 60 N.m
Bearing DE: 6306 2Z C3
Bearing NDE: 6206 2Z C3

Specifications

Power Rating
4.0kW
Motor Speed (Poles)
3000 RPM - 2 POLE
Frame Size
IEC 112M
Shaft Size
28mm

Universal PEF31-112M-2 4.0kW 2 Pole 415/3/50Hz Brake Motor PEF31 112M 2
