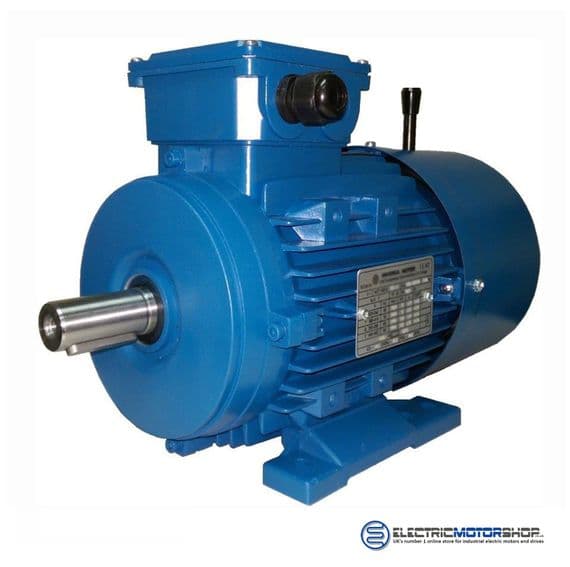

Universal PEF31-100LX-4 3.0kW 4 Pole 415/3/50Hz Brake Motor PEF31 100LX 4

Product Description

*Directly replaces old HEF31 100 L2 4 model*

PEF31-100LX-4, PEF31 100LX 4, PEF31100LX4



Series: Three Phase Electric Brake Motor
Motor type: PEF31-100LX-4
Poles: 4
Output: 3 kW / 4 Cv
Speed (min-1): 1440 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 6.33 A
Temperature rise Class: B
Insulation class: F
Weight: 21.1 Kg
Power factor (Cos Ø): 0.80
Efficiency IE3 Premium Efficiency
Noise: 64 Db(A)
Torque: 19.9 N.m
Tstarting/Tnominal: 3.8
Istarting/Inominal: 7.8
Tmaximum/Tnominal: 3.5
Brake AC: AC5
Torque Brake AC: 40 N.m
Brake DC: REB05-12
Torque Brake DC: 32 N.m
Bearing DE: 6206 2Z C3
Bearing NDE: 6206 2Z C3

Specifications

Power Rating
3.0kW
Motor Speed (Poles)
1500 RPM - 4 POLE
Frame Size
IEC 100L
Shaft Size
28mm

Universal PEF31-100LX-4 3.0kW 4 Pole 415/3/50Hz Brake Motor PEF31 100LX 4
