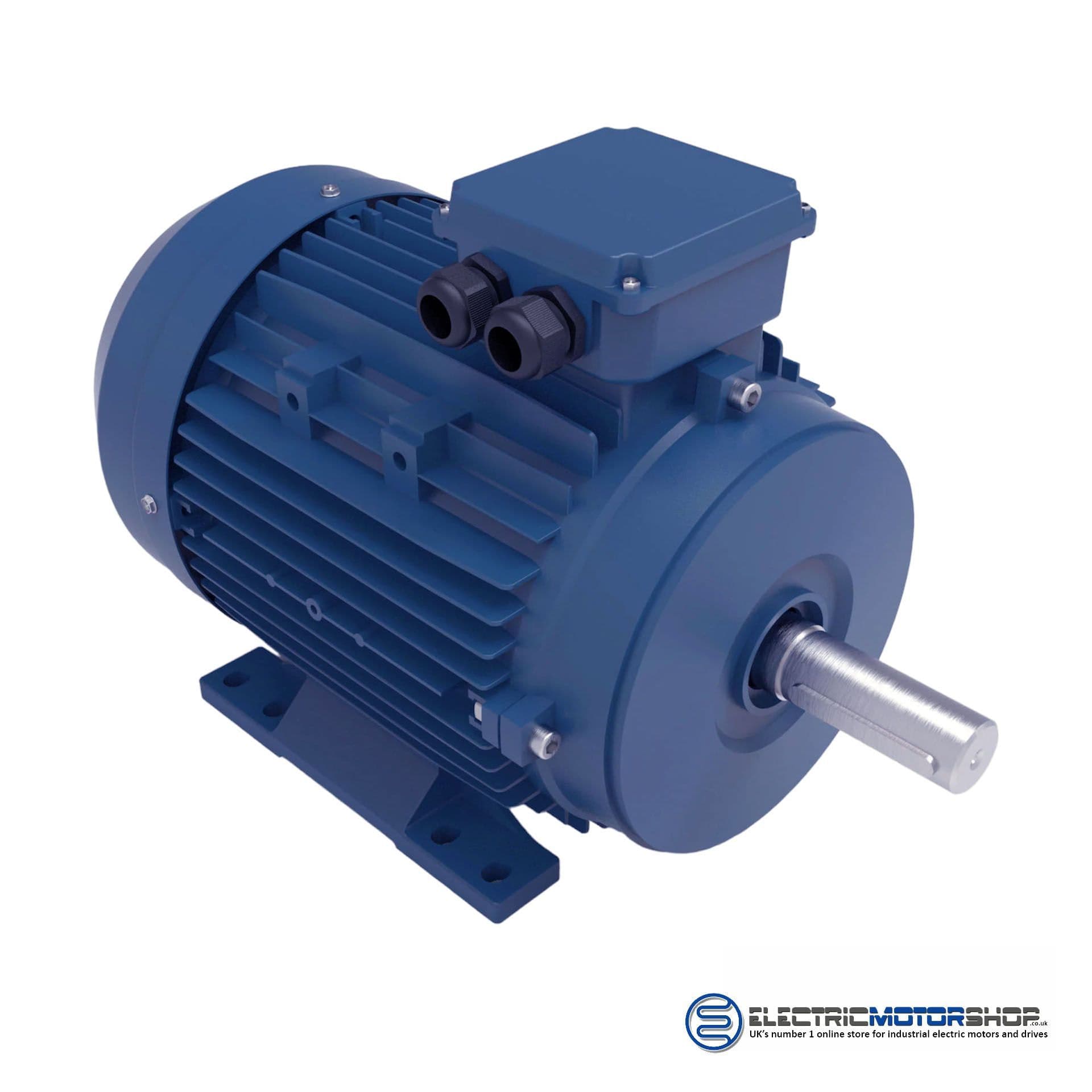

Universal Motors UM3C 250M-4 55.0kW 4 Pole 400V 3PH IE3 UM3C250M4

Product Description



Series: Three Phase Electric Motors - Cast Iron Frame
Motor type: UM3C 250M-4 IE3
Poles: 4
Output: 55 kW / 75 Cv
Speed (min-1): 1485 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 97.6 A
Temperature rise Class: B
Insulation class: F
Weight: 450 Kg
Power factor (Cos Ø): 0.86
Efficiency 50%: 93.6 %
Efficiency 75%: 94.8 %
Efficiency 100%: 94.6 %
Noise: 79 Db(A)
Torque: 354 N.m
Tstarting/Tnominal: 2.0
Istarting/Inominal: 7.4
Tmaximum/Tnominal: 2.3
Bearing DE: 6314 C3
Bearing NDE: 6314 C3

Specifications

Frame Size
250M Frame
Power Rating
55.0kW
Motor Speed (Poles)
4 Pole - 1500RPM
Shaft Size
65mm

Universal Motors UM3C 250M-4 55.0kW 4 Pole 400V 3PH IE3 UM3C250M4
