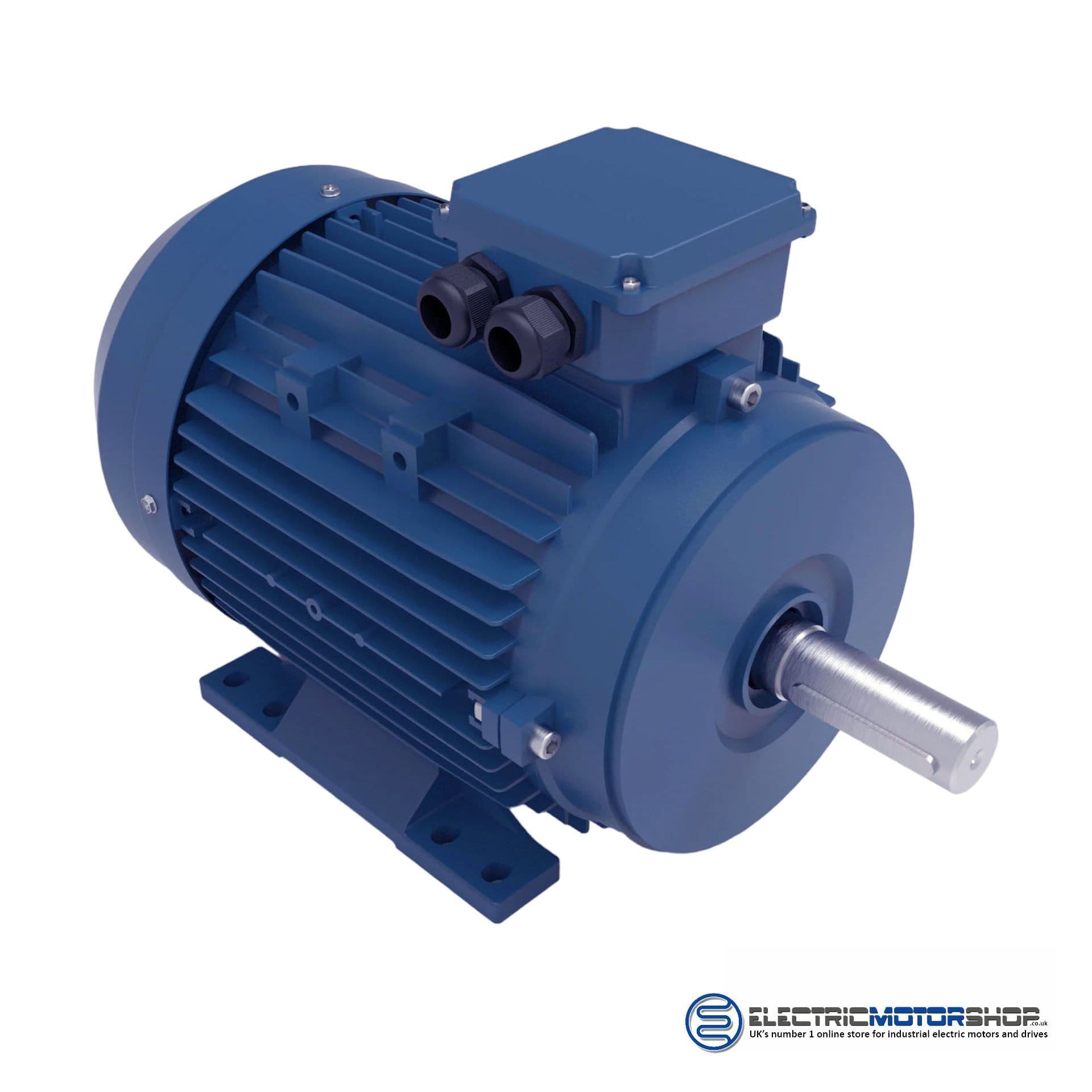

Universal Motors UM3C 160L-4 15.0kW 4 Pole 400V 3PH IE3 UM3C160L4

Product Description

          ​​​​​​​

Series: Three Phase Electric Motors - Cast Iron Frame
Motor type: UM3C 160L-4 IE3
Poles: 4
Output: 15 kW / 20 Cv
Speed (min-1): 1470 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 27.3 A
Temperature rise Class: B
Insulation class: F
Weight: 163 Kg
Power factor (Cos Ø): 0.86
Efficiency 50%: 91.5 %
Efficiency 75%: 92.5 %
Efficiency 100%: 92.2 %
Noise: 73 Db(A)
Torque: 97 N.m
Tstarting/Tnominal: 2.2
Istarting/Inominal: 7.8
Tmaximum/Tnominal: 2.3
Bearing DE: 6309 C3
Bearing NDE: 6309 C3

Specifications

Frame Size
160L Frame
Power Rating
15.0kW
Motor Speed (Poles)
4 Pole - 1500RPM
Shaft Size
42mm

Universal Motors UM3C 160L-4 15.0kW 4 Pole 400V 3PH IE3 UM3C160L4
