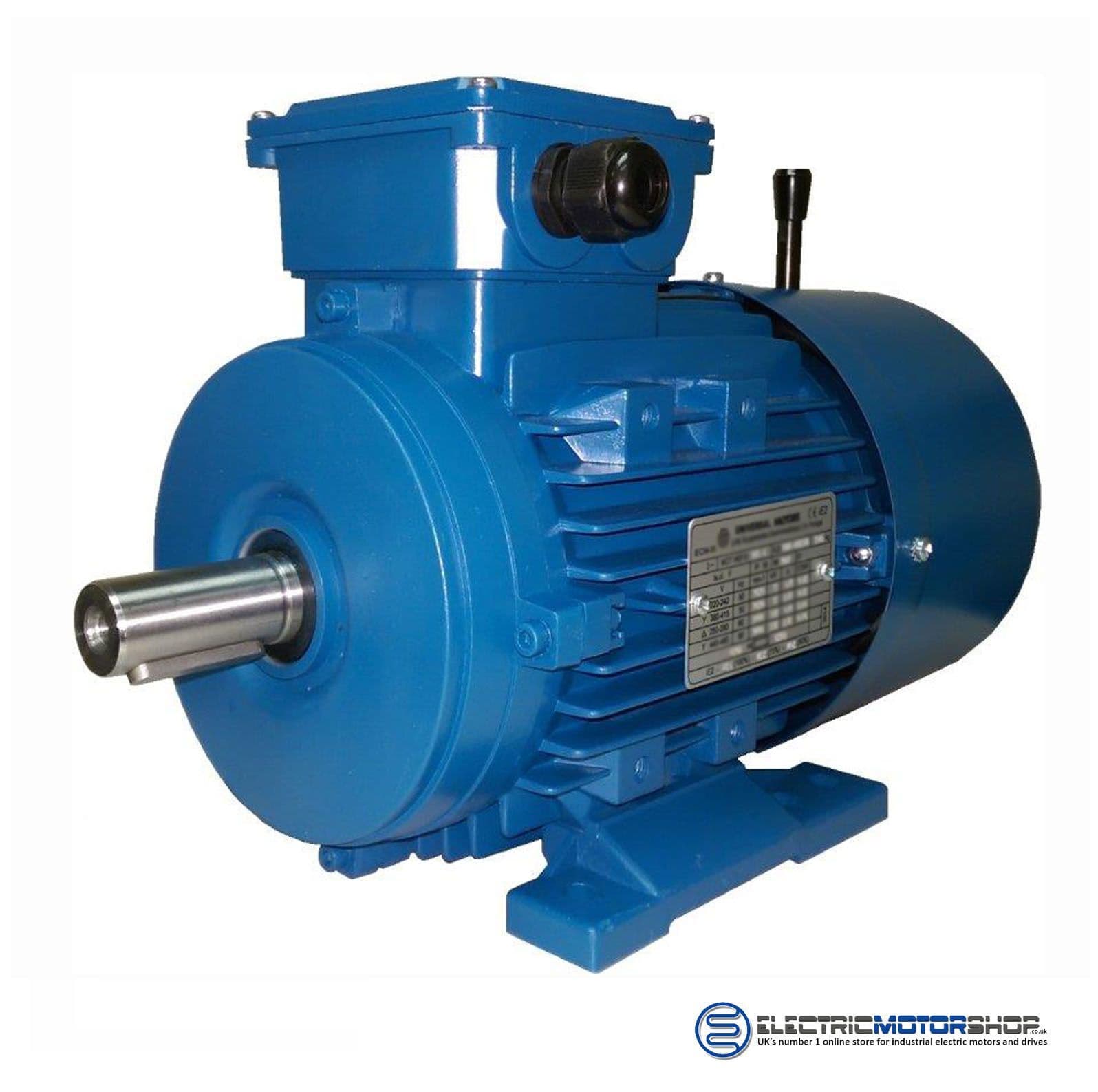

Universal HEF31-71G-4 0.37kW 4 Pole 415/3/50Hz Brake Motor HEF31 71 G 4

Product Description

*Directly replaces old BFF31 71 M2 4 model*

HEF31-71G-4, HEF31 71G 4, HEF3171G4



Series: Three Phase Electric Brake Motor
Motor type: HEF31-71G-4
Poles: 4
Output: 0.37 kW / 0.5 Cv
Speed (min-1): 1370 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 1.11 A
Temperature rise Class: B
Insulation class: F
Weight: 6.2 Kg
Power factor (Cos Ø): 0.74
Efficiency IE2 High Efficiency
Noise: 55 Db(A)
Torque: 2.5 N.m
Tstarting/Tnominal: 2.2
Istarting/Inominal: 6.0
Tmaximum/Tnominal: 2.4
Brake AC: AC2
Torque Brake AC: 10 N.m
Brake DC: REB-05 06
Torque Brake DC: 4 N.m
Bearing DE: 6202 2Z C3
Bearing NDE: 6202 2Z C3

Specifications

Power Rating
0.37kW
Motor Speed (Poles)
1500 RPM - 4 POLE
Frame Size
IEC 71
Shaft Size
14mm

Universal HEF31-71G-4 0.37kW 4 Pole 415/3/50Hz Brake Motor HEF31 71 G 4
