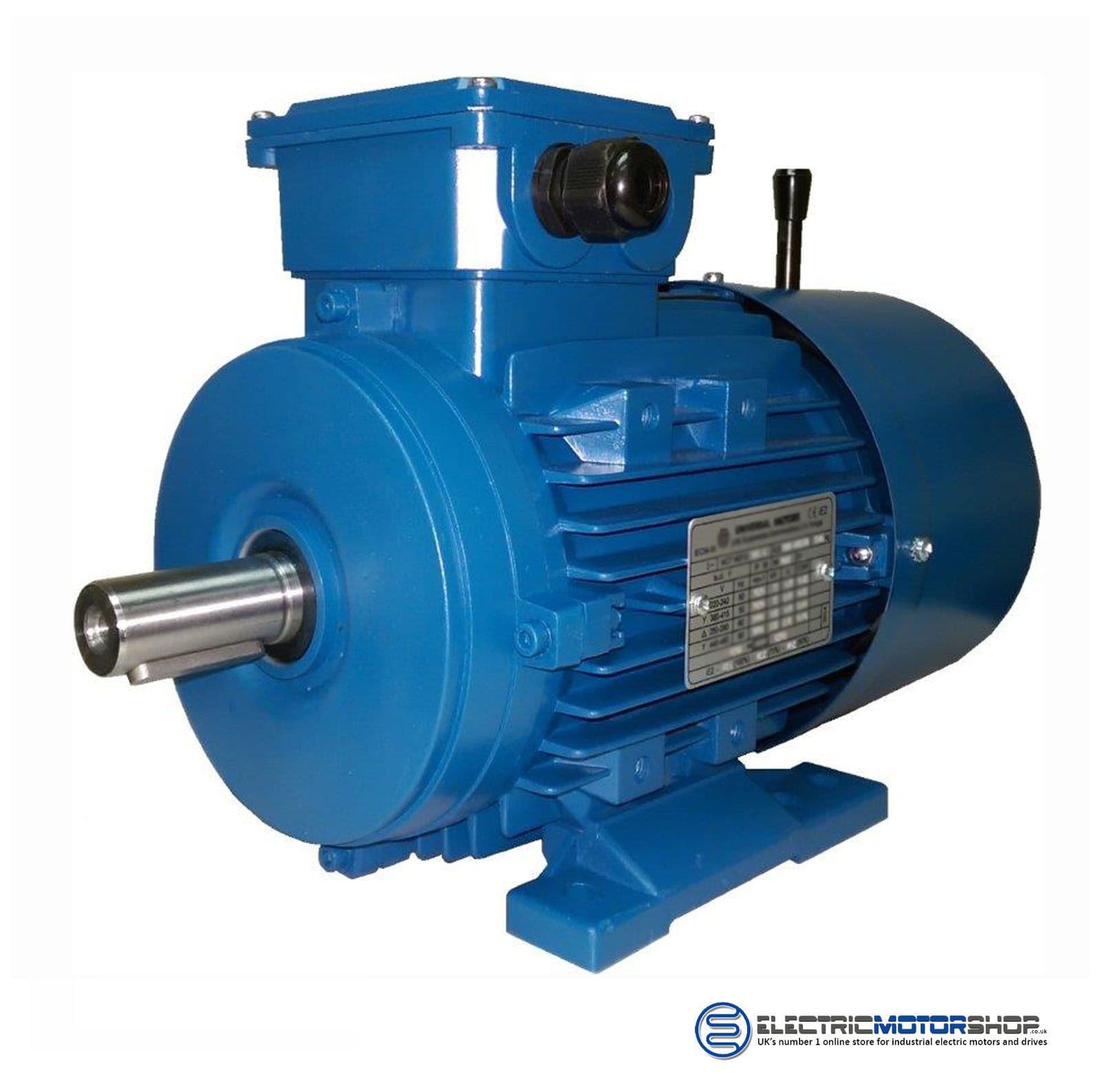

Universal HEF31-71G-2 0.55kW 2 Pole 415/3/50Hz Brake Motor HEF31 71 G 2

Product Description

*Directly replaces old BFF31 71 M2 2 model*

HEF31-71G-2, HEF31 71G 2, HEF3171G2



Series: Three Phase Electric Brake Motor
Motor type: HEF31-71G-2
Poles: 2
Output: 0.55 kW / 0.75 Cv
Speed (min-1): 2760 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 1.42 A
Temperature rise Class: B
Insulation class: F
Weight: 6.1 Kg
Power factor (Cos Ø): 0.79
Efficiency IE2 High Efficiency
Noise: 64 Db(A)
Torque: 1.9 N.m
Tstarting/Tnominal: 2.2
Istarting/Inominal: 6.0
Tmaximum/Tnominal: 2.4
Brake AC: AC2
Torque Brake AC: 10 N.m
Brake DC: REB-05 06
Torque Brake DC: 4 N.m
Bearing DE: 6202 2Z C3
Bearing NDE: 6202 2Z C3

Specifications

Power Rating
0.55kW
Motor Speed (Poles)
3000 RPM - 2 POLE
Frame Size
IEC 71
Shaft Size
14mm

Universal HEF31-71G-2 0.55kW 2 Pole 415/3/50Hz Brake Motor HEF31 71 G 2
