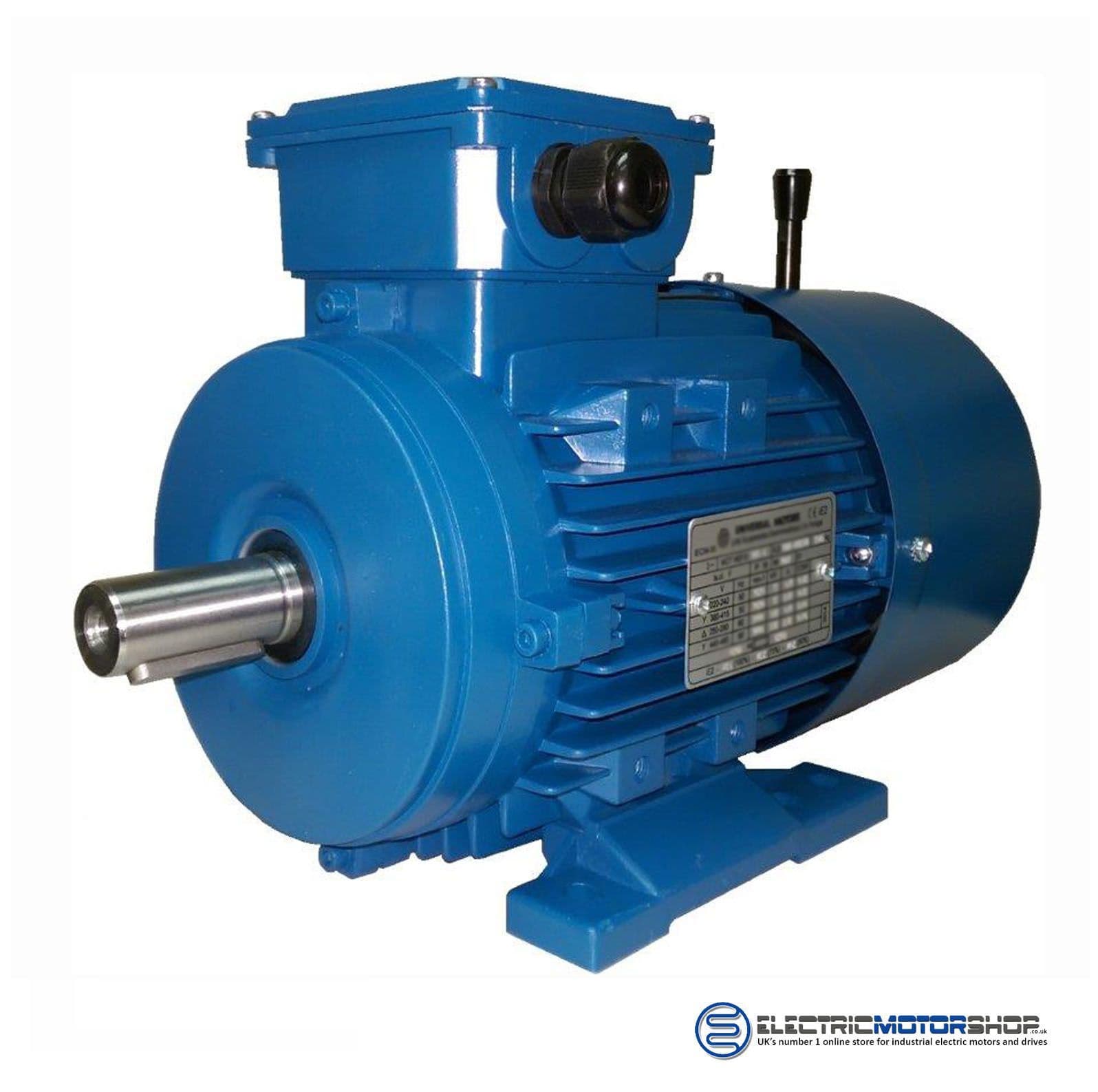

Universal HEF31-63K-2 0.18kW 2 Pole 415/3/50Hz Brake Motor HEF31 63 K 2

Product Description

*Directly replaces old BFF31 63 M1 2 model*

HEF31-63K-2, HEF31 63K 2, HEF3163K2

          ​​​​​​​

Series: Three Phase Electric Brake Motor
Motor type: HEF31-63K-2
Poles: 2
Output: 0.18 kW / 0.25 Cv
Speed (min-1): 2710 RPM
Frequency: 50 Hz
Voltage: 400 V
Current: 0.55 A
Temperature rise Class: B
Insulation class: F
Weight: 4.0 Kg
Power factor (Cos Ø): 0.75
Efficiency  IE2 High Efficiency
Noise: 59 Db(A)
Torque: 0.6 N.m
Tstarting/Tnominal: 2.2
Istarting/Inominal: 6.0
Tmaximum/Tnominal: 2.4
Brake AC: AC2
Torque Brake AC: 10 N.m
Brake DC: REB-05 06
Torque Brake DC: 4 N.m
Bearing DE: 6201 2Z C3
Bearing NDE: 6201 2Z C3

Specifications

Power Rating
0.18kW
Motor Speed (Poles)
3000 RPM - 2 POLE
Frame Size
IEC 63
Shaft Size
11mm

Universal HEF31-63K-2 0.18kW 2 Pole 415/3/50Hz Brake Motor HEF31 63 K 2
