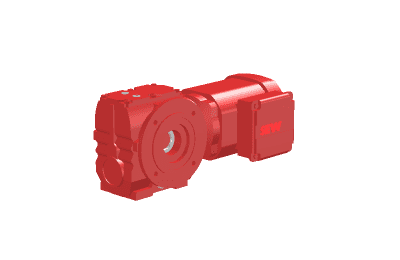

SEW SAF47DRS71M4 0.55kW 31RPM 44.22:1 Ratio 30mm Hollow Bore & 160mm Output Flange

Product Description

SEW SAF47DRS71M4



Characteristic Value Unit
Rated motor speed 1360 1/min
Output speed 31 1/min
Overall gear ratio 44.22
Output torque 135 Nm
Service factor SEW-FB 1.15
input mounting position/IM M1A
Prime / top coat 7031 Blue Grey (20070310)
Position of connector/terminal box 0 °
Cable entry/connector position X
Hollow shaft 30 mm
Permitted output overhung load with n=1400 6810 N
Lubricant quantity 1st gear unit 0.4 Liter
Flange diameter 160 mm
Motor power 0.55 kW
Duration factor S1-100%
Efficiency class IE1
Efficiency (50/75/100% Pn) 69.1 / 71.9 / 70.6 %
CE mark Yes
Motor voltage 230/400 V
Wiring diagram R13
Frequency 50 Hz
Rated current 2.7 / 1.55 A
Cos Phi 0.72
Thermal class 130(B)
Motor protection type IP54
Design requirement IEC
Net weight 24 Kg

SEW SAF47DRS71M4 0.55kW 31RPM 44.22:1 Ratio 30mm Hollow Bore & 160mm Output Flange
