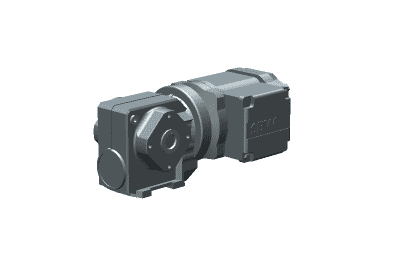

SEW SA37DRN63MS4 0.12kW 4P 3PH 230/415V IE3

Product Description

SEW SA37DRN63MS4 Inline Helical Geared Motor

SA37DRN63MS4
Characteristic Value Unit
Rated motor speed 1380 1/min
Output speed Select Option
Overall gear ratio Select Option
Output torque Selection Dependent
Service factor SEW-FB Selection Dependent
Mounting position M1A
Base / top coat 7031 Blue gray (51370310)
Terminal box position [°] 0 °
Cable entry position X
Hollow shaft 20 mm
Design type Hollow shaft
Permitted output overhung load with n=1400 4000 N
Lubricant quantity 1st gear unit 0.25 Liter
Motor power 0.12 kW
Duration factor S1-100%
Efficiency class IE3
Efficiency (50/75/100% Pn) 58.3 / 63.9 / 64.8 %
CE mark Yes
Motor voltage 230/400 V
Connection type delta/star
Wiring diagram R13
Frequency 50 Hz
Rated current 0.7 / 0.41 A
Cos Phi 0.64
Thermal class 130(B)
Motor protection type IP54
Design requirement Europe (CE)
Mass moments of inertia (referring to the input side) 3.00 10-4 kgm2
Net weight 11.5 Kg

Specifications

Power Rating
0.12kW
Output Shaft Size
20mm Hollow Bore
Gearbox Mounting
Foot Mounted
Gearbox Size
SA37 / SAF37

SEW SA37DRN63MS4 0.12kW 4P 3PH 230/415V IE3
