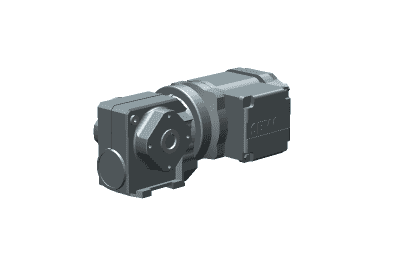

SEW SA37DRN63M4 0.18kW 4P 3PH 230/415V IE3

Product Description

SEW SA37DRN63M4 Inline Helical Geared Motor

SA37DRN63M4
Characteristic Value Unit
Rated motor speed 1375 1/min
Output speed Select Option
Overall gear ratio Select Option
Output torque Selection Dependent
Service factor SEW-FB Selection Dependent
Mounting position M1A
Base / top coat 7031 Blue gray (51370310)
Terminal box position [°] 0 °
Cable entry position X
Hollow shaft 20 mm
Design type Hollow shaft
Permitted output overhung load with n=1400 3320 N
Lubricant quantity 1st gear unit 0.25 Liter
Motor power 0.18 kW
Duration factor S1-100%
Efficiency class IE3
Efficiency (50/75/100% Pn) 65.1 / 69.4 / 69.9 %
CE mark Yes
Motor voltage 230/400 V
Connection type delta/star
Wiring diagram R13
Frequency 50 Hz
Rated current 0.99 / 0.57 A
Cos Phi 0.65
Thermal class 130(B)
Motor protection type IP54
Design requirement Europe (CE)
Mass moments of inertia (referring to the input side) 3.90 10-4 kgm2
Net weight 12.5 Kg

Specifications

Power Rating
0.18kW
Output Shaft Size
20mm Hollow Bore
Gearbox Mounting
Foot Mounted
Gearbox Size
SA37 / SAF37
