RX series (single-stage)
|
|
For high output speeds, the exclusively single-stage gear units RX57 to RX107 offer compact solutions for your system design.
|
|
Technical data
|
||
|
Gear unit gear ratio
|
[i]
|
1.30 to 8.65
|
|
Output torque
|
[Nm]
|
36 to 830
|
|
Motor power range
|
[kW]
|
0.12 to 45
|
 |
R series (two-stage and three-stage)
|
|
Our complete range of helical gearmotors provides the optimum size and power solution for every drive task. And for operators with a “weight-watching” issue, our multi-stage gear units provide something special: Thanks to their die-cast aluminum design, the models R07, R17 and R27 are three particularly efficient lightweights – ideal as satellite drives and for use in light machine constructions. Reduced backlash helical gear units are also available for particularly precise requirements.
|
|
Technical data
|
||
|
Gear unit reduction ratio
|
[i]
|
3.21 to 289.74
|
|
Multi-stage gear unit reduction ratio
|
[i]
|
90 to 27,001
|
|
Output torque
|
[Nm]
|
31 to 18,000
|
|
Motor power range
|
[kW]
|
0.09 to 160
|
 |
RM series
|
|
RM gearmotors with extended output bearing hub are a special type of helical gearmotor. They were designed especially for agitating applications and allow for high overhung and axial loads and bending moments. The remaining data corresponds to that of standard helical gearmotors.
|
|
Technical data
|
||
|
Gear unit reduction ratio
|
[i]
|
4.29 to 289.74
|
|
Multi-stage gear unit reduction ratio
|
[i]
|
134 to 27,001
|
|
Output torque
|
[Nm]
|
270 to 18,000
|
|
Motor power range
|
[kW]
|
0.12 to 160
|
|
Single-stage
|
Size
|
||||||
|
57
|
67
|
77
|
87
|
97
|
107
|
||
|
RX..
|
Foot-mounted
|
RX57
|
RX67
|
RX77
|
RX87
|
RX97
|
RX107
|
|
RXF..
|
Flange-mounted
|
RXF57
|
RXF67
|
RXF77
|
RXF87
|
RXF97
|
RXF107
|
|
Multi-stage
|
Size
|
|||||||
|
07
|
17
|
27
|
37
|
47
|
57
|
67
|
||
|
R..
|
Foot-mounted
|
R07
|
R17
|
R27
|
R37
|
R47
|

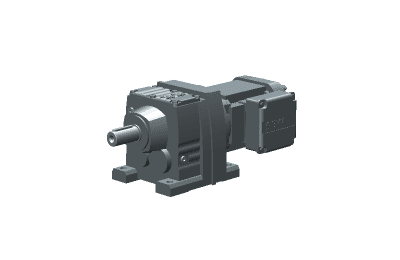

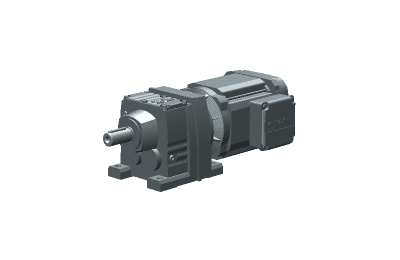

R57
|
R67
|
|
R..F
|
Foot-mounted and flange-mounted
|
R07F
|
R17F
|
R27F
|
R37F
|
R47F
|
R57F
|
R67F
|
|
RF..
|
B5 flange-mounted design
|
RF07
|
RF17
|
RF27
|
RF37
|

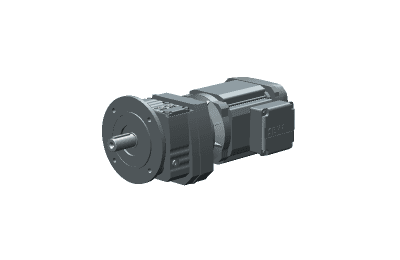

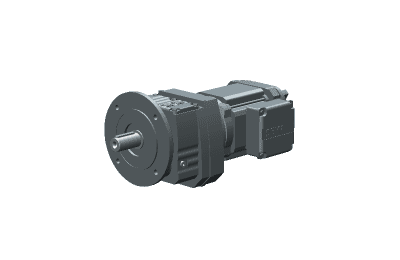

RF47
|
RF57
|
RF67
|
|
RZ..
|
B14 Flange-mounted design
|
RZ07
|
RZ17
|
RZ27
|
RZ37
|
RZ47
|
RZ57
|
RZ67
|
|
RM..
|
Flange-mounted with extended bearing hub
|
–
|
–
|
–
|
–
|
–
|
RM57
|
RM67
|
|
Multi-stage
|
Size
|
|||||||
|
77
|
87
|
97
|
107
|
137
|
147
|
167
|
||
|
R..
|
Foot-mounted
|
R77
|
R87
|
R97
|
R107
|
R137
|
R147
|
R167
|
|
R..F
|
Foot-mounted and flange-mounted
|
R77F
|
R87F
|
R97F
|
R107F
|
R137F
|
R147F
|
R167F
|
|
RF..
|
B5 flange-mounted design
|
RF77
|
RF87
|
RF97
|
RF107
|
RF137
|
RF147
|
RF167
|
|
RZ..
|
B14 Flange-mounted design
|
RZ77
|
RZ87
|
–
|
–
|
–
|
–
|
–
|
|
RM..
|
Flange-mounted with extended bearing hub
|
RM77
|
RM87
|
RM97
|
RM107
|
RM137
|
RM147
|
RM167
|
