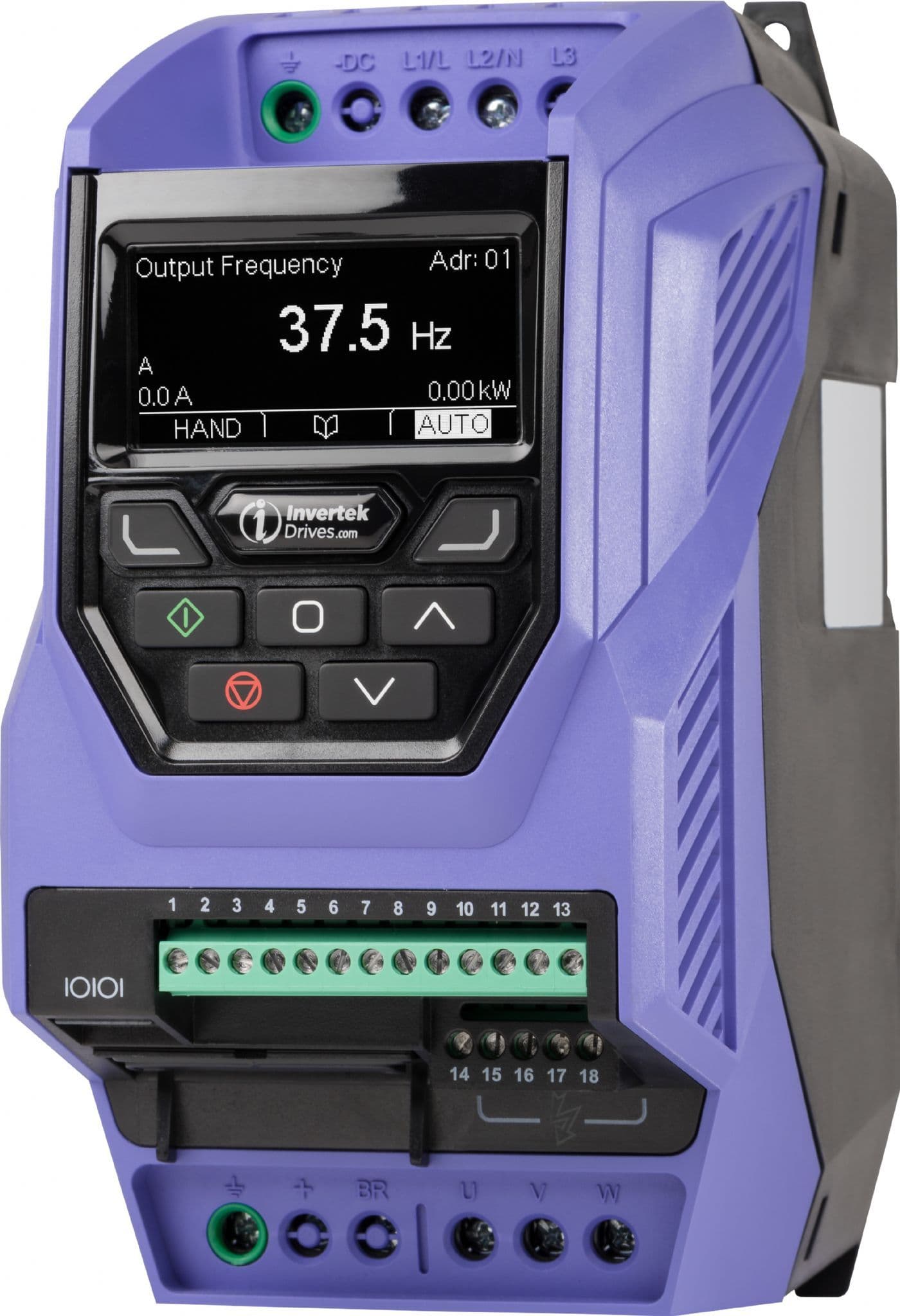

Optidrive ECO ODV-3-220043-1F12-MN 0.75kW 4.3A 1PH-3PH IP20

Product Description



Part Number: Optidrive ECO ODV-3-220043-1F12-MN

Power kW 0.75
Power HP 1
Input Voltage 240V
Output Voltage 0 to input V
Input Phases 1
Output Phases 3
Output Current 4.3Amps
Input Current 8.5Amps
Encl Rating IP20
Width 110mm
Height 221mm
Depth 185mm
Frame Size 2
Overload 110%
Duty Normal
Dynamic Braking No
MFR Invertek
Weight 1.8kg
Control Type ECO Vector
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 2
Output relay(s) 2
Serial Coms Modbus, Bacnet
Approvals UL. cUL, C- Tick, Gost R, ROHS

Details

Invertek Optidrive ECO ODV-3-220043-1F12-MN,IP20

230V single phase in, 230V three phase out inverter. Quadratic output for energy optimisation. Internal PID feedback loop for flow / level / temperature control.  LED display.  On board RFI filter. Dedicated to Centrifugal fan and pump applications.

Optidrive ECO ODV-3-220043-1F12-MN 0.75kW 4.3A 1PH-3PH IP20
