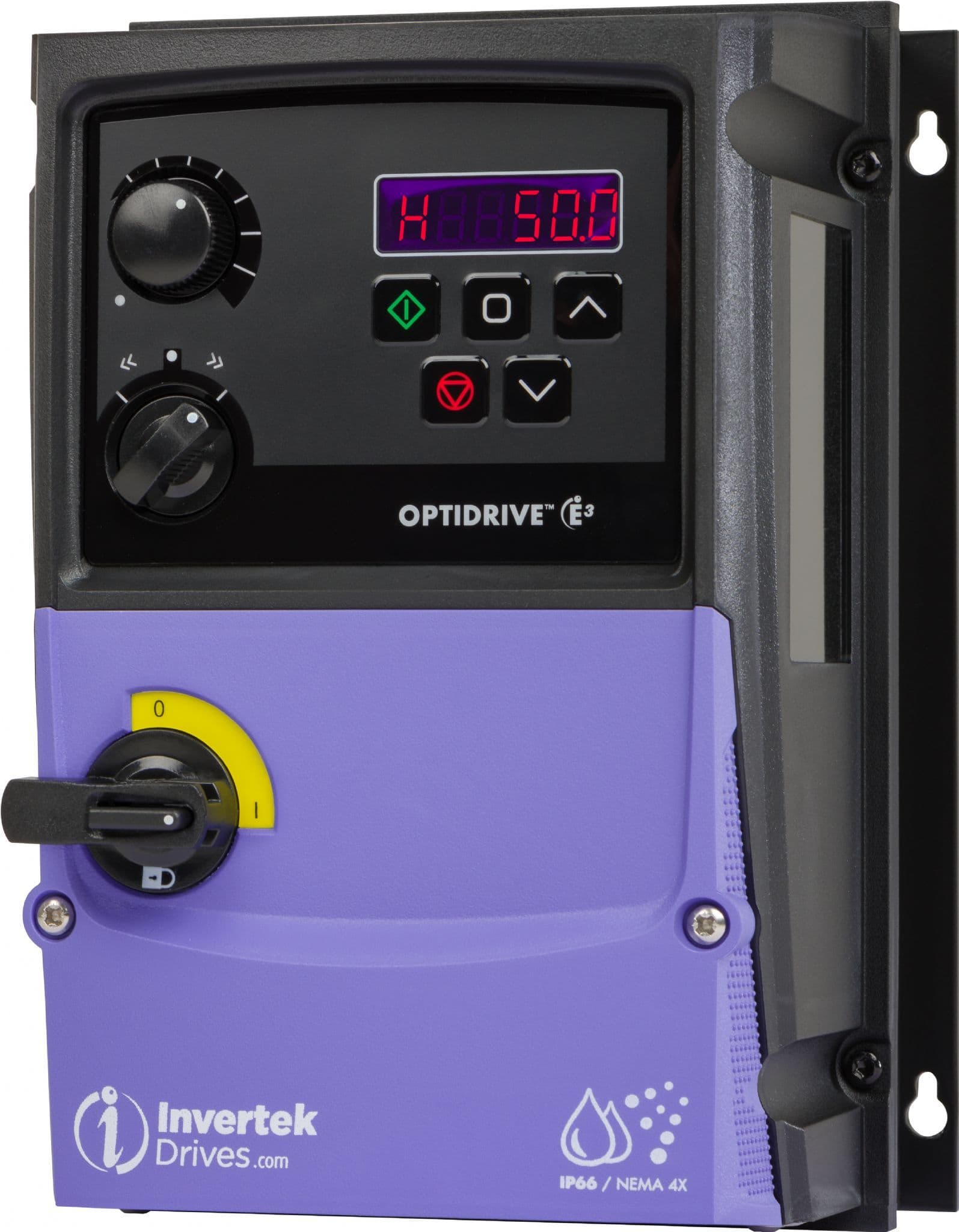

Invertek Optidrive E3 0.75kW 4.30A 1PH-3PH IP66 ODE-3-120043-1F1B

Product Description

Power kW 0.75kW
Power HP 1HP
Input Voltage 240V
Output Voltage 0 to 240V
Input Phases 1
Output Phases 3
Output Current 4.3Amps
Input Current 7.5Amps
Encl Rating IP66 Switched
Width 161mm
Height 232mm
Depth 155mm
Frame Size 1
Overload 150%
Duty Heavy
Dynamic Braking No
MFR Invertek
Weight 3.1kg
Control Type Simple vector or V/f mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Coms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS

Details

Invertek ODE-3-120043-1F1B, E3, 0.75kW, IP66 Switched, 230V single phase input, 230V three phase output inverter, 4.3A output, internal EMC filter.  On-board isolator, speed potentiometer and Foward-Stop-Reverse switch.  Ideal for wall mounting in damp and dusty environments, suitable for outdoor use. Robust and easy to use. 14 parameters for basic setup.

Specifications

Power Rating
0.75kW
Output Current Rating
4.3A

Invertek Optidrive E3 0.75kW 4.30A 1PH-3PH IP66 ODE-3-120043-1F1B
