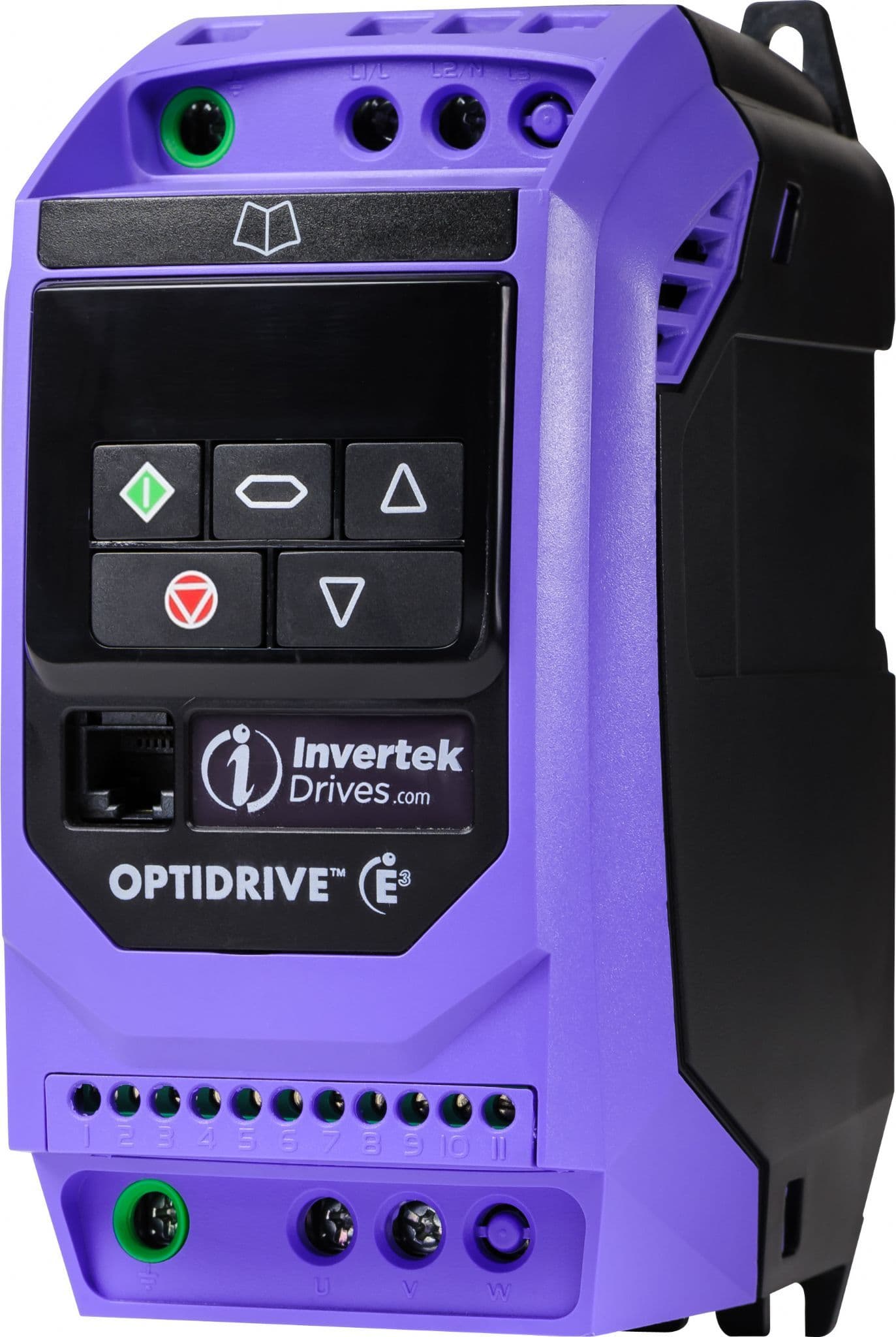

Invertek Optidrive E3 0.75kW 4.30A 1PH-3PH IP20 ODE-3-120043-1F12

Power Rating:  0.75kW
Output Current Rating:  4.3A
Send to a friend
Direct replacement for old model ODE-2-12075-1KB12
Power kW 0.75kW
Power HP 1HP
Input Voltage 240V
Output Voltage 0 to 240V
Input Phases 1
Output Phases 3
Output Current 4.3Amps
Input Current 7.5Amps
Encl Rating IP20
Width 83mm
Height 173mm
Depth 123mm
Frame Size 1
Overload 150%
Duty Heavy
Dynamic Braking No
MFR Invertek
Weight 1kg
Control Type Simple vector or V/f mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Coms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS


Invertek ODE-3-120043-1F12, E3, IP20, 0.75kW, 230V single phase input, 230V three phase output inverter, 4.3A output, internal EMC filter, panel/cabinet mount. Robust and easy to use. 14 parameters for basic setup.
