*Please note that the newer upgraded model will be sent out if there is no longer any stock remaining*

*The new model is an identical replacement of the original, same terminals, parameters and foot print*

Can be mounted right next to plant equipment, suitable for all washdown applications, no need to mount within panels / enclosures.

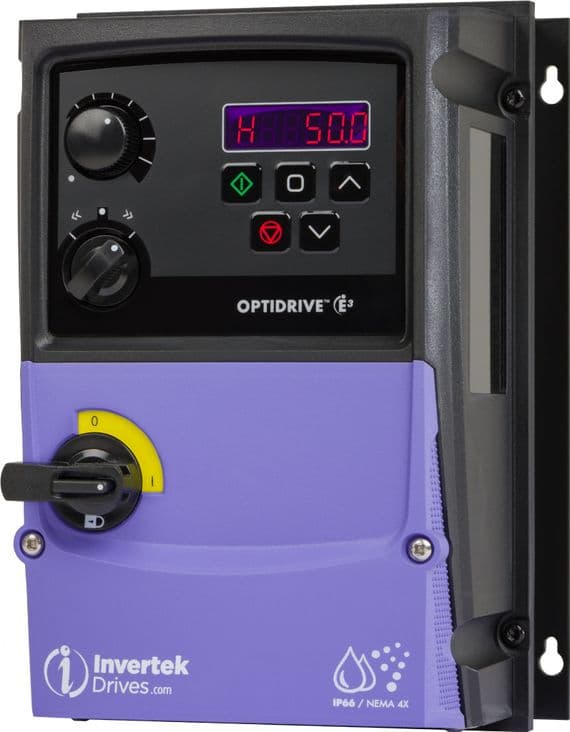

Features at a glance for the Invertek OPTIDRIVE E2 IP66.

• Open loop inverter
• Single phase 230 Volt input
• Three phase output
• Frame size 1 (161mm W - 175mm D - 232mm H)
• IP66 body ingress protection
• On-board isolator
• On-board forward/reverse selector
• On-board control potentiometer
• 7.0A FLC - use on standard AC induction motors
• 4 inputs - selectable analogue / digital
• 1 output - selectable analogue / digital
• 1 user relay output
• Operates in 40 degree ambient temperature
• EIA485 communication

Benefits of this compact inverter includes :-

Optional OPTIWAND allows users to commission drives and retain parameter records without the requirement of a PC.

Easy to use remote mounting keypad.

OPTIDRIVE E2 is ideal for :-

• Pumps
• Fans
• Conveyers
• Chemical dosing
• Centrifuges
• Door and barrier opening systems
• Food and beverage lines
