IE4 Super Premium Efficiency

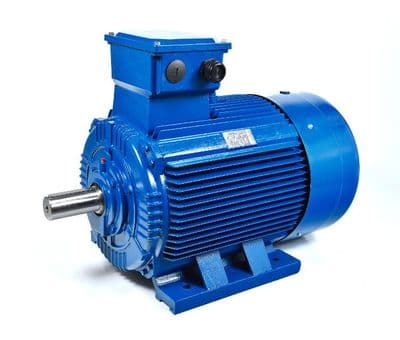

AM4-IE4 Cast Iron Motors - Super Premium Efficiency
AmTecs range of cast iron IE4 super premium efficiency motors (with cast feet for foot mounted designs) is suitable for many different standard and heavy duty industrial applications, including compressors, pump, fans and conveyors. The cast iron design has fixed feet making it's design ideal for high vibration and rugged environments such as quarries as well as standard manufacturing and building service industries. IE4 is AmTecs most premium energy saving motor.
IE4 = Super Premium Efficiency
- Power range 30.0kW - 355kW.
- Available in 3000rpm (2 pole), 1500rpm (4 pole).
- Cast-Iron three-phase squirrel cage induction motors according to IEC 60034-1.
- Foot mounted with fixed feet.
- Standard Voltage ranges 220-240/380-420V or 380-420/660-720V, 50Hz.
- Insulation class F, Class B Temperature rise.
- Protection IP55.
- Colour RAL 5010.
- Regreaseable bearings 160 frame and above.
- Thermistors as standard.

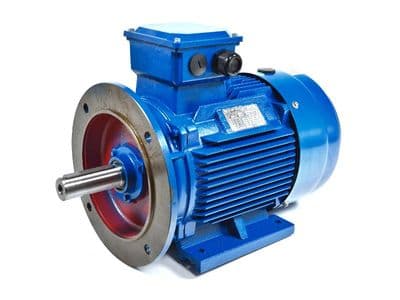

- Mounting IM B3 & B35.
