Product Description

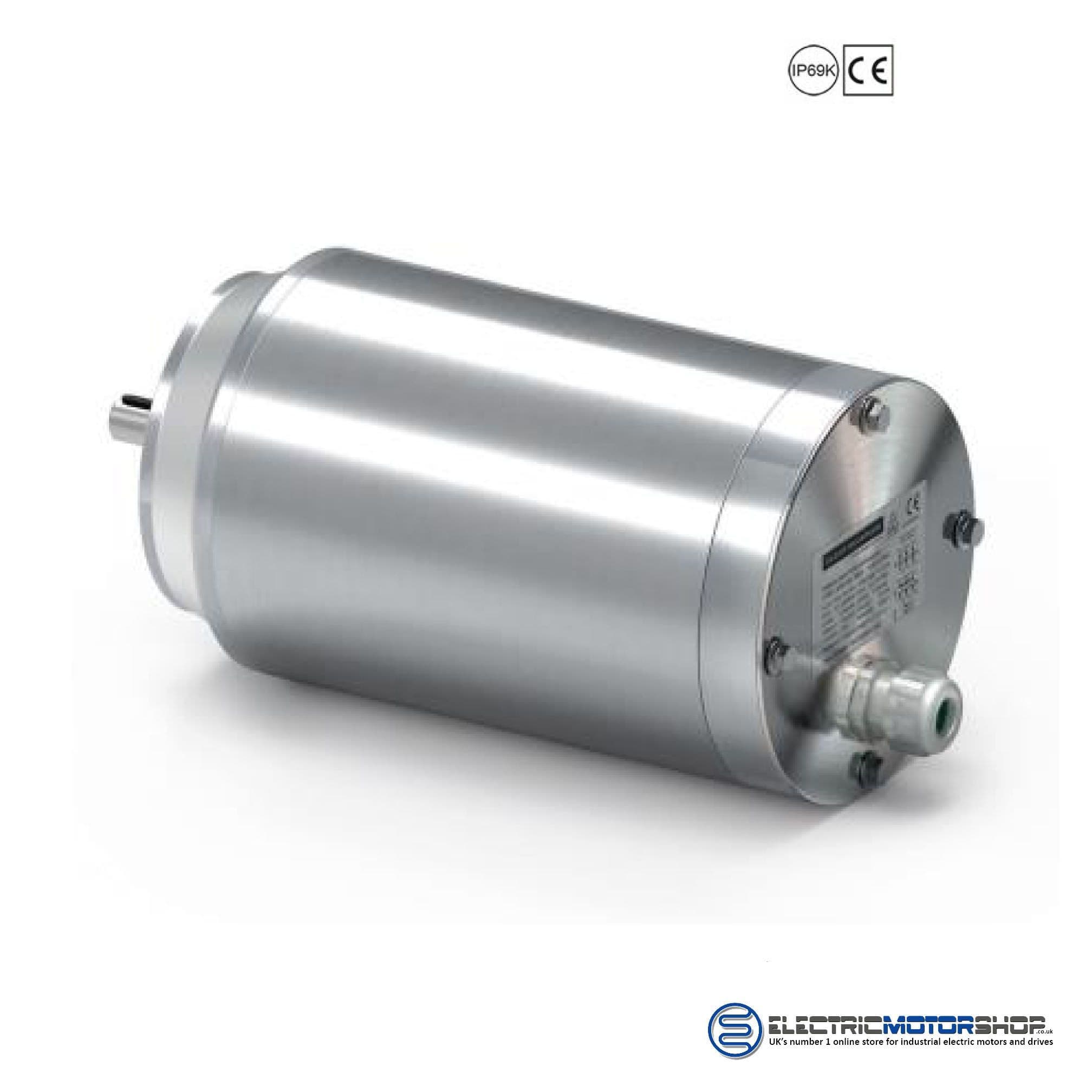

APM series premium electric motors have no cooling fins and are treated with the innovative "Hi-Cleaning" coating applying nano particles (patented system), which makes the surface very easy to clean and resistant to major aggressive agents used in sanitizing.

The surface temperature is rather low thanks to an accurate electromagnetic design and additional internal active material. The efficiency class is IE3 for motors 0.75kW and above. All external components are manufactured in aluminium while motor shaft is produced in 420 stainless steel with magnetic properties and all screws are made of 316L stainless steel. APM63A4B14


Maingroup Stainless steel motors
Subgroup IP 69K TENV
General specifications
Motorsize 63
Power 0.12 [kW]
Poles 4
Mounting B14
Efficiency class IE1 Standard Efficiency
Voltage 230/400V 50Hz
Electrical specifications
Rated current In – 400V 0.44 [A]
Ist/In
η – 100%
cos φ 0.57
Mechanical specifications
Rated rpm 1430 [rpm]
T 0.8 [Nm]
Tst/Tn
Tmax/Tn
Weight 6.9 [kg]
IP class IP 69K
Housing material Aluminium
Variable frequency drive compatible Yes

Specifications

Motor Speed (Poles)
1500 RPM (4 Pole)
Power Rating
0.12kW
Frame Size
63 Frame
Mounting
B14 Face Mtd
Enclosure Rating
IP69K

Clean-Geartech APM63A4B14 0.12kW 4 Pole 230/400V 50Hz IP69K IE1
