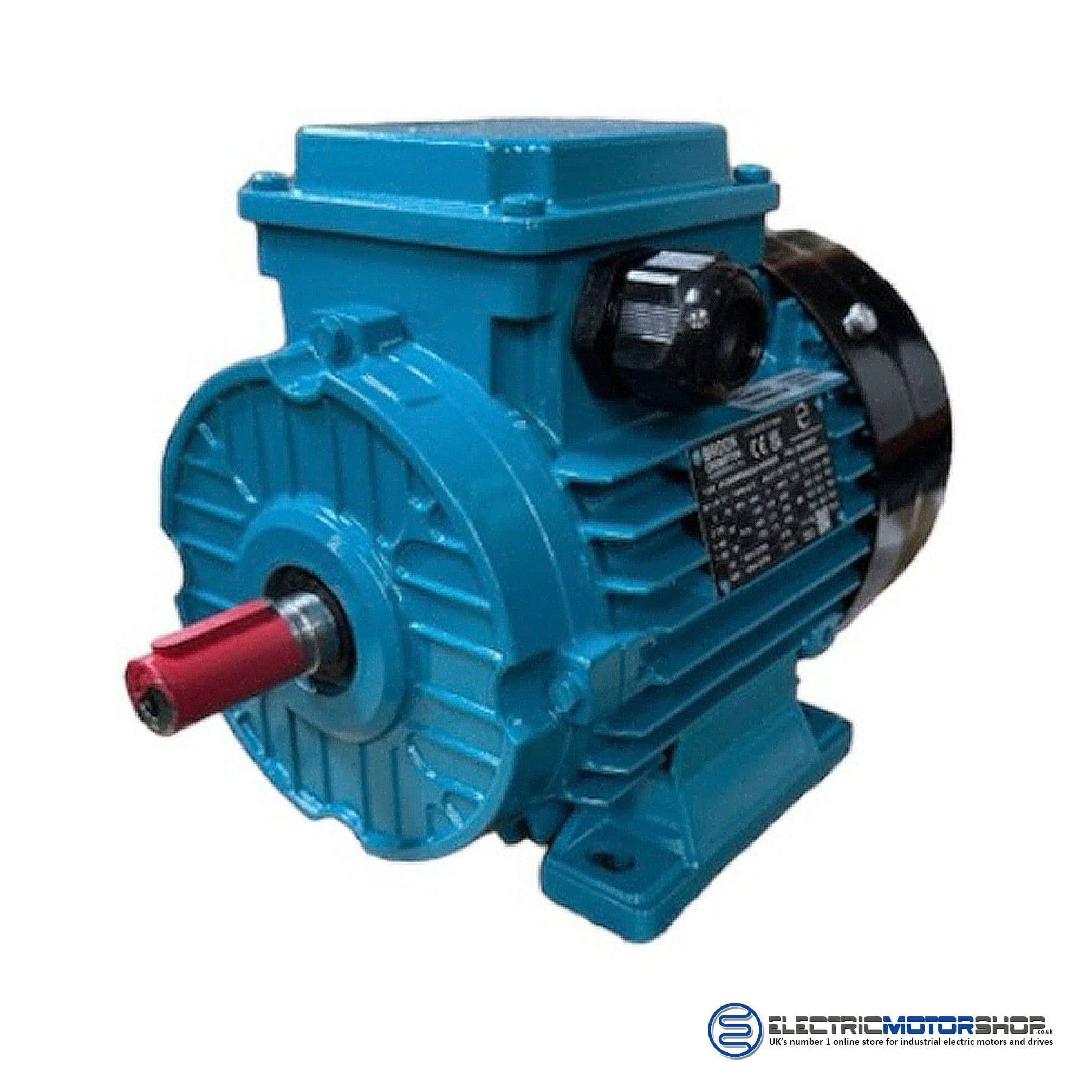

Brook Crompton Series 30 S30 IE3 JP-DA90SA Electric Motor

*Replaces old A-DA90SA, WU-DA90SRX and WP-DA90STX*

Brook Crompton Series 30 IE3 1.1kW (1.5HP) three phase 4 pole 90S frame AC Induction Motor for 230V or 400V 3 phase supply. Suitable for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency three phase mains supply at 50Hz.

Output: 1.1kW (1.5HP) at 1439rpm.
Speed Range from an Inverter Supply: 143.9rpm to 4500rpm (5Hz to 156.4Hz)
Constant Power Speed Range: 1439rpm to 4500rpm continuously.

Full Load Current with links in Δ (Delta) for 230V 3ph: 4.49A.
Full Load Current with links in Y (Star) for 400V 3ph: 2.59A.
Torque: 7.3Nm
Efficiency: 84.1% (IE3)
Power Factor: 0.73 when mains connected at 50Hz.

Terminal box cable entry: Includes Includes 1 x M25 Gland.
Terminal box position: Top.
Enclosure rating: IP55.

Overall Dimensions: 184mm Wide x 313mm Long (including shaft) x 215mm High (Including Terminal Box)
Shaft: 24mm diameter, 50mm long with 8mm key
Construction: Aluminium
Weight: 14kg

Ambient Temperature: Rated to 40°C.
Ventilation space is required at rear cooling air intake.
Over-Temperature Detection: PTC Thermistors fitted (1 per phase in series)
