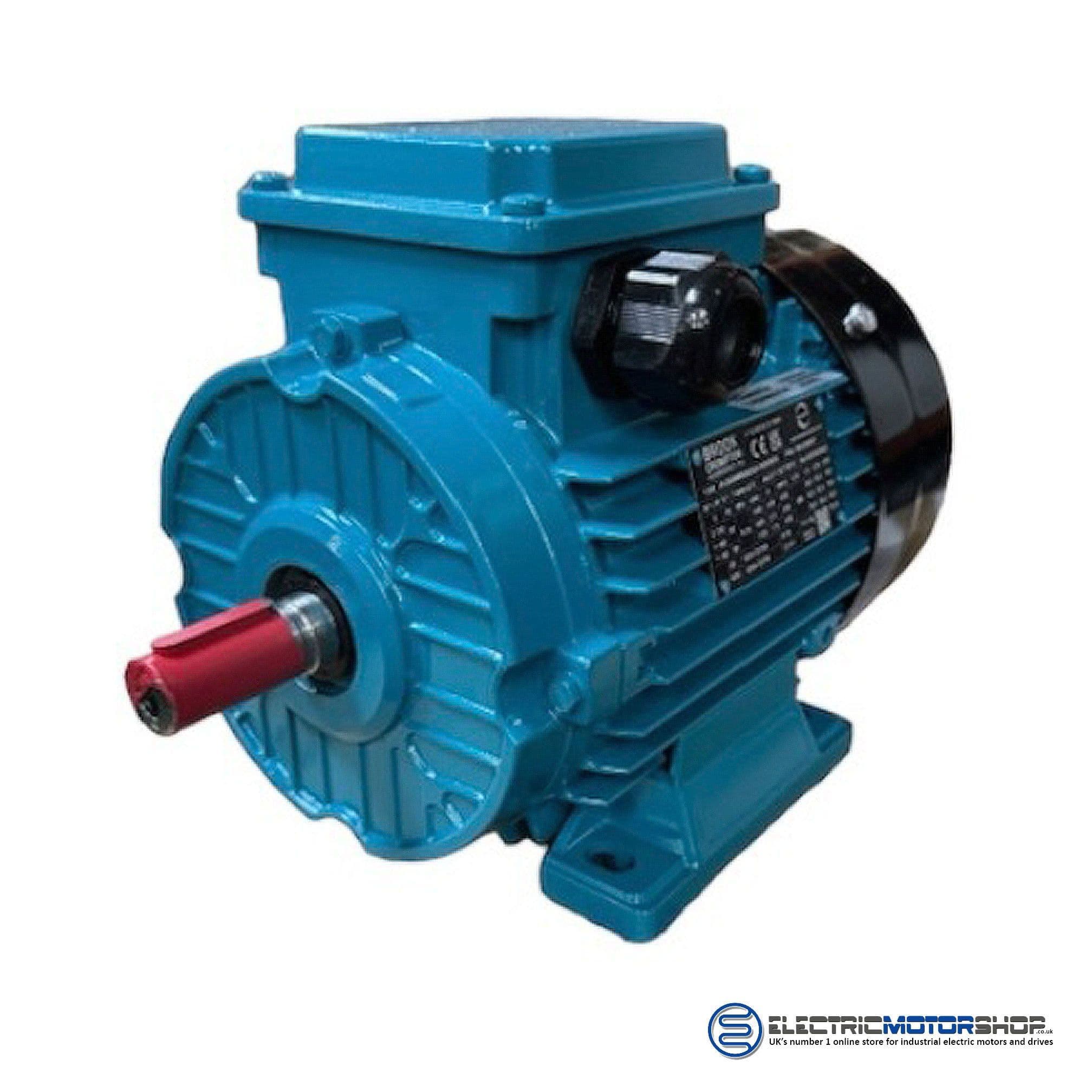

Brook Crompton Series 30 S30 IE3 JP-DA80MB Electric Motor

*Replaces old A-DA80MB, WU-DA80MM and WP-DA80MS*

Brook Crompton Series 30 IE3 1.1kW (1.5HP) three phase 2 pole 80 frame AC Induction Motor for 230V or 400V 3 phase supply. Suitable for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency three phase mains supply at 50Hz.

Output: 1.1kW (1.5HP) at 2870rpm.
Speed Range from an Inverter Supply: 287rpm to 4500rpm (5Hz to 78Hz)
Constant Power Speed Range: 2870rpm to 4500rpm continuously.

Full Load Current with links in Δ (Delta) for 230V 3ph: 4.36A.
Full Load Current with links in Y (Star) for 400V 3ph: 2.52A.
Torque: 3.65Nm
Efficiency: 82.7% (IE3)
Power Factor: 0.76 when mains connected at 50Hz.

Terminal box cable entry: Includes Includes 1 x M25 Gland.
Terminal box position: Top.
Enclosure rating: IP55.

Overall Dimensions: 164mm Wide x 290mm Long (including shaft) x 196mm High (Including Terminal Box)
Shaft: 19mm diameter, 40mm long with 6mm key
Construction: Aluminium
Weight: 10kg

Ambient Temperature: Rated to 40°C.
Ventilation space is required at rear cooling air intake.
Over-Temperature Detection: PTC Thermistors fitted (1 per phase in series)
