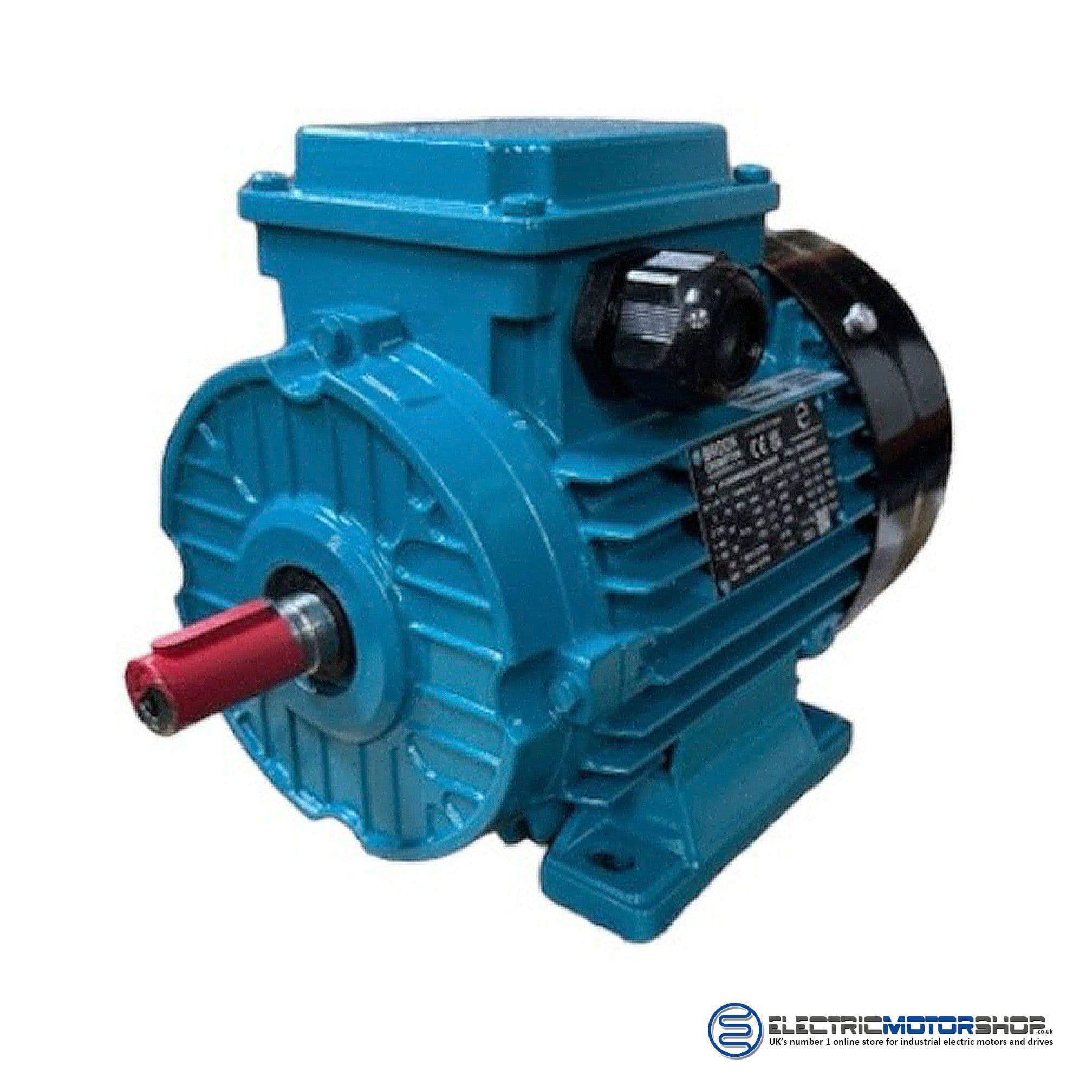

Brook Crompton Series 30 S30 IE3 JP-DA132SB Electric Motor

*Replaces old A-DA132SB, WU-DA132SJX and WP-DA132SMX*

Brook Crompton Series 30 IE3 7.5kW (10HP) three phase 2 pole 132S frame AC Induction Motor for 400V or 690V 3 phase supply. Suitable for use with a Variable Frequency Inverter Drive having a 3ph input and 3ph output, or a fixed frequency three phase mains supply at 50Hz.

Output: 7.5kW (10HP) at 2920rpm.
Speed Range from an Inverter Supply: 292rpm to 4500rpm (5Hz to 77.1Hz)
Constant Power Speed Range: 2920rpm to 4500rpm continuously.

Full Load Current with links in Δ (Delta) for 400V 3ph: 14A.
Full Load Current with links in Y (Star) for 690V 3ph: 8A.
Torque: 24.6Nm
Efficiency: 90.1% (IE3)
Power Factor: 0.86 when mains connected at 50Hz.

Terminal box cable entry: Includes Includes 2 x M32 Gland.
Terminal box position: Top.
Enclosure rating: IP55.

Overall Dimensions: 274mm Wide x 429mm Long (including shaft) x 318mm High (Including Terminal Box)
Shaft: 38mm diameter, 80mm long with 10mm key
Construction: Aluminium
Weight: 49kg

Ambient Temperature: Rated to 40°C.
Ventilation space is required at rear cooling air intake.
Over-Temperature Detection: PTC Thermistors fitted (1 per phase in series)
