Product Description

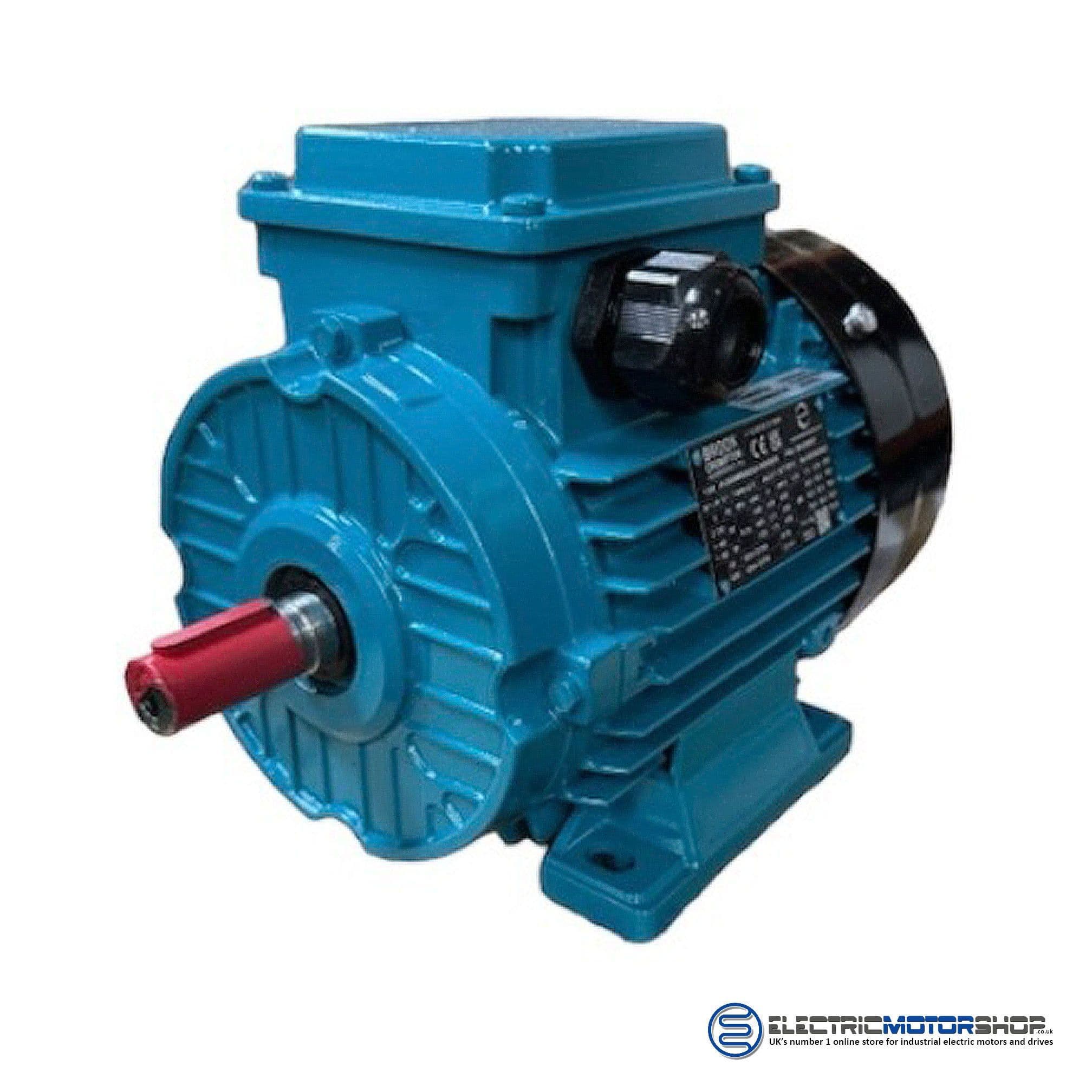

Brook Crompton Series 30 S30 IE3 JP-DA132SA Electric Motor

*Replaces old A-DA132SA, WU-DA132SEX and WP-DA132SGX*

Brook Crompton Series 30 IE3 5.5kW (7.5HP) three phase 2 pole 132S frame AC Induction Motor for 400V or 690V 3 phase supply. Suitable for use with a Variable Frequency Inverter Drive having a 3ph input and 3ph output, or a fixed frequency three phase mains supply at 50Hz.

Output: 5.5kW (7.5HP) at 2910rpm.
Speed Range from an Inverter Supply: 291rpm to 4500rpm (5Hz to 77.3Hz)
Constant Power Speed Range: 2910rpm to 4500rpm continuously.

Full Load Current with links in Δ (Delta) for 400V 3ph: 10.5A.
Full Load Current with links in Y (Star) for 690V 3ph: 6.A.
Torque: 18.1Nm
Efficiency: 89.2% (IE3)
Power Factor: 0.85 when mains connected at 50Hz.

Terminal box cable entry: Includes Includes 2 x M32 Gland.
Terminal box position: Top.
Enclosure rating: IP55.

Overall Dimensions: 274mm Wide x 429mm Long (including shaft) x 318mm High (Including Terminal Box)
Shaft: 38mm diameter, 80mm long with 10mm key
Construction: Aluminium
Weight: 43kg

Ambient Temperature: Rated to 40°C.
Ventilation space is required at rear cooling air intake.
Over-Temperature Detection: PTC Thermistors fitted (1 per phase in series)

Specifications

Frame Size
IEC 132S
Power Rating
5.5kW
Motor Speed (Poles)
2 POLE - 3000 RPM
Shaft Size
38mm

Brook Crompton S30 JP-DA132SA 5.5kW 2 Pole 400/690V IE3 50Hz A-DA132SA
