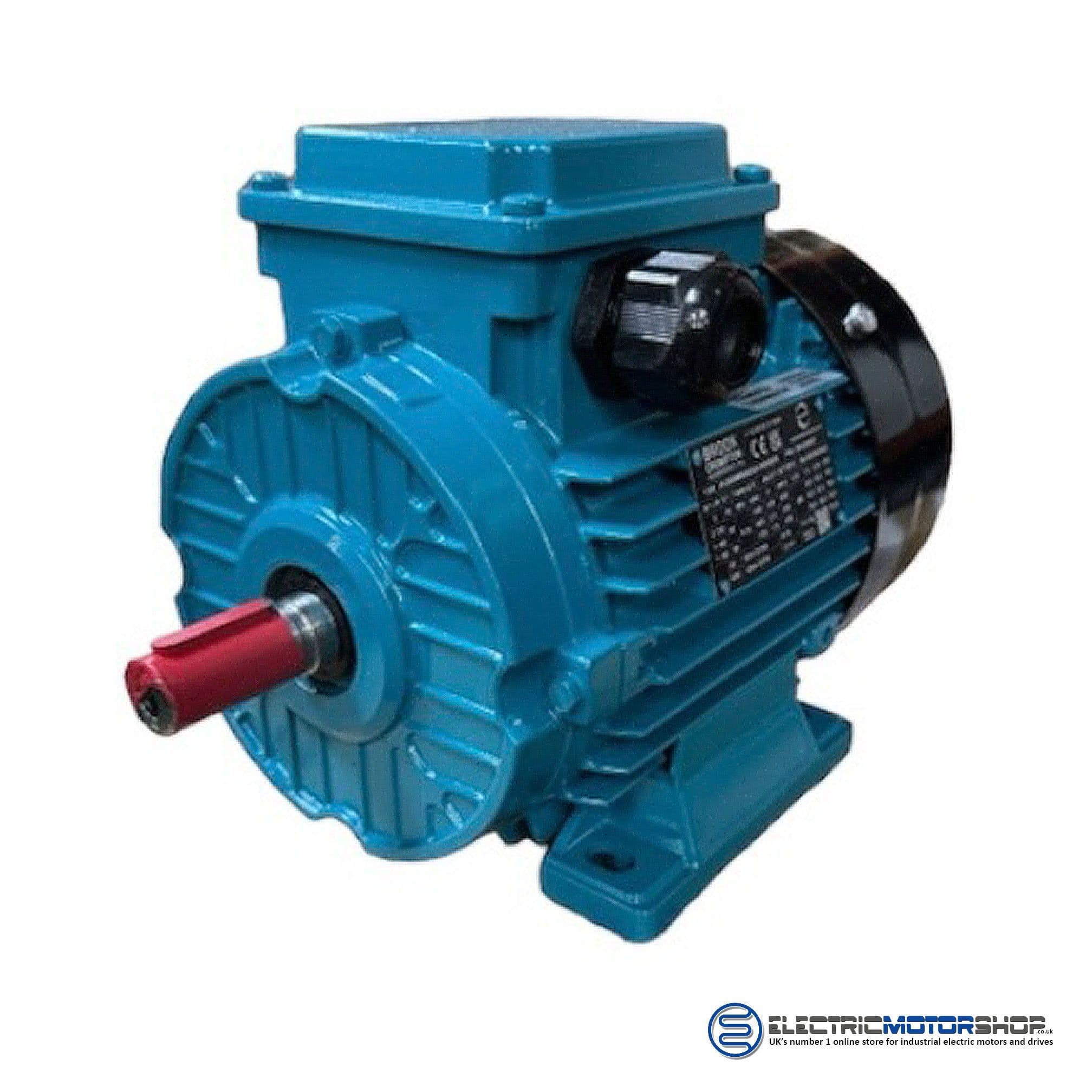

Brook Crompton Series 30 S30 IE3 JP-DA112MA Electric Motor

*Replaces old A-DA112MA, WU-DA112MT and WP-DA112MWX*

Brook Crompton Series 30 IE3 4kW (5HP) three phase 4 pole 112M frame AC Induction Motor for 400V or 690V 3 phase supply. Suitable for use with a Variable Frequency Inverter Drive having a 3ph input and 3ph output, or a fixed frequency three phase mains supply at 50Hz.

Output: 4kW (5HP) at 1447rpm.
Speed Range from an Inverter Supply: 144.7rpm to 4500rpm (5Hz to 155.5Hz)
Constant Power Speed Range: 1447rpm to 4500rpm continuously.

Full Load Current with links in Δ (Delta) for 400V 3ph: 8.15A.
Full Load Current with links in Y (Star) for 690V 3ph: 4.71A.
Torque: 26.4Nm
Efficiency: 88.6% (IE3)
Power Factor: 0.8 when mains connected at 50Hz.

Terminal box cable entry: Includes Includes 2 x M25 Gland.
Terminal box position: Top.
Enclosure rating: IP55.

Overall Dimensions: 232mm Wide x 390mm Long (including shaft) x 260mm High (Including Terminal Box)
Shaft: 28mm diameter, 60mm long with 8mm key
Construction: Aluminium
Weight: 31kg

Ambient Temperature: Rated to 40°C.
Ventilation space is required at rear cooling air intake.
Over-Temperature Detection: PTC Thermistors fitted (1 per phase in series)
