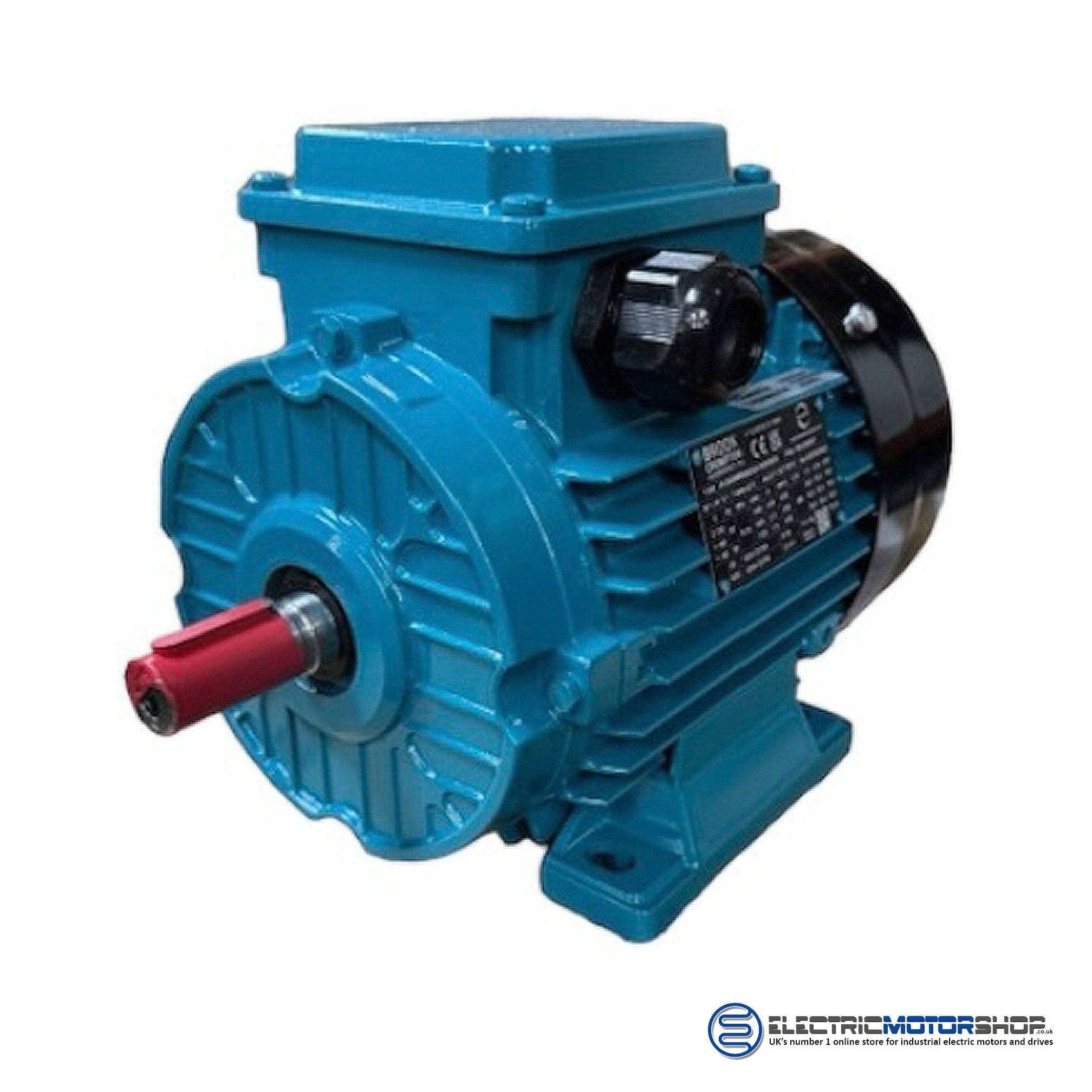

Brook Crompton Series 30 S30 IE3 JP-DA100LB Electric Motor

*Replaces old A-DA100LB, WU-DA100LTF and WP-DA100LTF*

Brook Crompton Series 30 IE3 3kW (4HP) three phase 4 pole 100L frame AC Induction Motor for 230V or 400V 3 phase supply. Suitable for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency three phase mains supply at 50Hz.

Output: 3kW (4HP) at 1444rpm.
Speed Range from an Inverter Supply: 144.4rpm to 4500rpm (5Hz to 155.8Hz)
Constant Power Speed Range: 1444rpm to 4500rpm continuously.

Full Load Current with links in Δ (Delta) for 230V 3ph: 11A.
Full Load Current with links in Y (Star) for 400V 3ph: 6.4A.
Torque: 19.8Nm
Efficiency: 87.7% (IE3)
Power Factor: 0.77 when mains connected at 50Hz.

Terminal box cable entry: Includes Includes 2 x M25 Gland.
Terminal box position: Top.
Enclosure rating: IP55.

Overall Dimensions: 208mm Wide x 375mm Long (including shaft) x 236mm High (Including Terminal Box)
Shaft: 28mm diameter, 60mm long with 8mm key
Construction: Aluminium
Weight: 25kg

Ambient Temperature: Rated to 40°C.
Ventilation space is required at rear cooling air intake.
Over-Temperature Detection: PTC Thermistors fitted (1 per phase in series)
