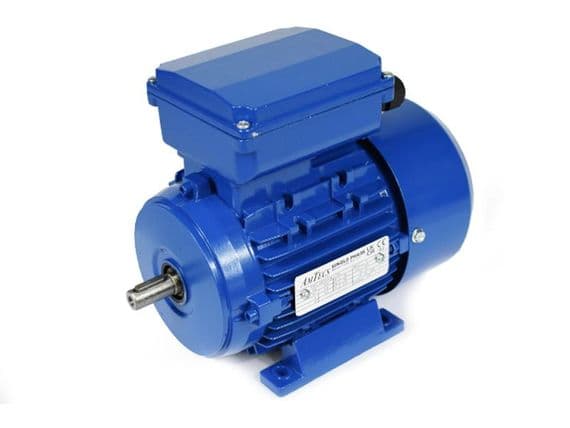

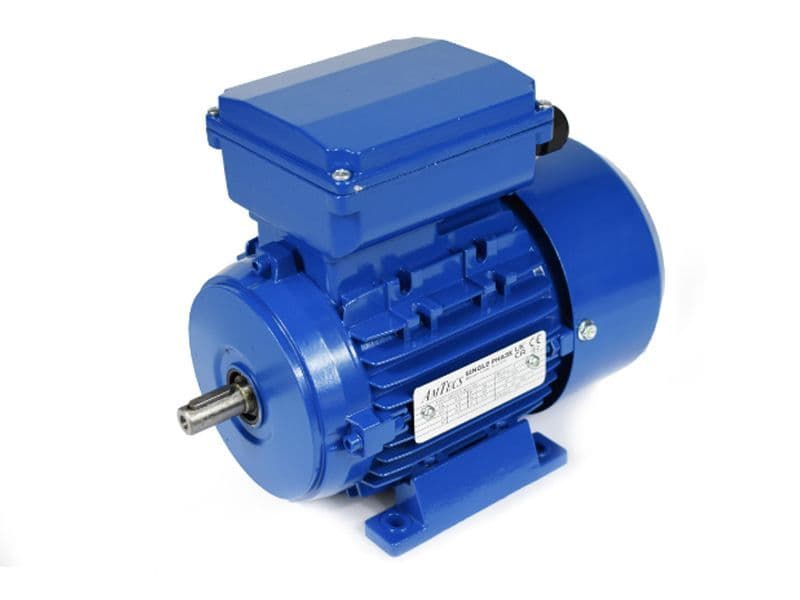

AMAS-SR-IE2 Single phase capacitor start & run motor

This range of aluminium single phase capacitor start capacitor run multi-mount motors are suitable for many different industrial applications. The start capacitor design is suitable for medium starting torque applications such as pumps. The multi-mount design enables the feet to be removed or moved to provide left, right or top terminal box configurations.
Starting torque 1.8 - 2.5 times the rated torque.

Applications

• Pumps
• Conveyors
• Hydraulic power packs

 Standard features

• Aluminium Terminal box as standard
• Thermal reset switch
• Industrial single phase series of aluminium housing motors
• Capacitor start, capacitor run
• IP55 protection degree
• Insulation class F, temperature rise 80°C
• Terminal box rotation at 180°
• RAL 5010, blue colour
• Available in 3000rpm (2 pole), 1500rpm (4 pole)
• Mounting IM B3, B5, B14S, B34L, B35, B34S, B34L, B5R
