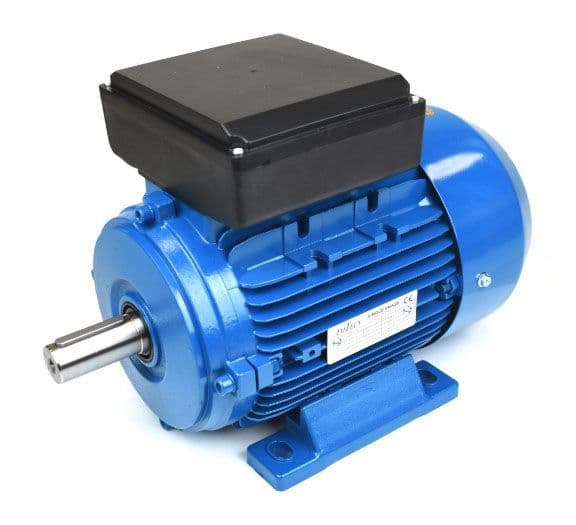

Amtecs AMAS-R-IE2 80G2 1.1kw 2 Pole 3000RPM Single Phase P/Cap

Product Description


Amtecs High Efficiency AMAS-R-IE2 High Running Torque Running Capacitor Motor. Aluminium single phase motors according to IEC regulations. Multi-mount design with removable feet.

Voltage 220 - 240V
50Hz
Insulation Class F
Protection IP55
Mounting IM B3
Colour RAL 5010

Shaft Size: 19mm
FLC: 6.5 Amps

Permanent capacitor electric motors are generally suited to equipment that starts up with very little or no load, i.e the load is then added once running. These motors are ideal for fans, blowers (with low starting torque needs), and intermittent cycling uses e.g. adjusting mechanisms, gate operators and garage door openers, many of which need instant reversing. They should never be used in hard to start applications; instead, it is best that you use cap start/cap run motor which can be found within our single phase motor menu.

Specifications

Motor Speed (Poles)
2 POLE - 3000 RPM
Power Rating
1.1kW
Frame Size
IEC 80
Shaft Size
19mm
Type
P/Cap - Low Starting Torque

Amtecs AMAS-R-IE2 80G2 1.1kw 2 Pole 3000RPM Single Phase P/Cap
