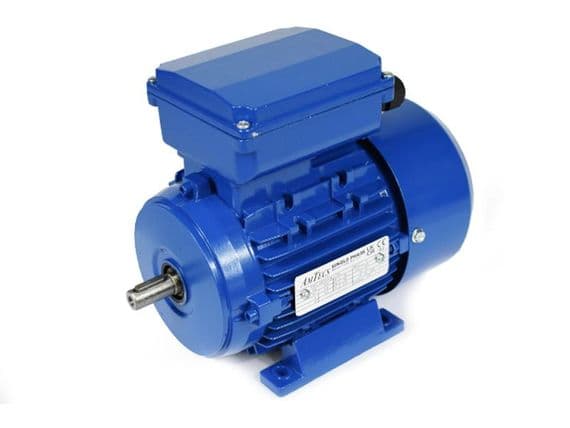

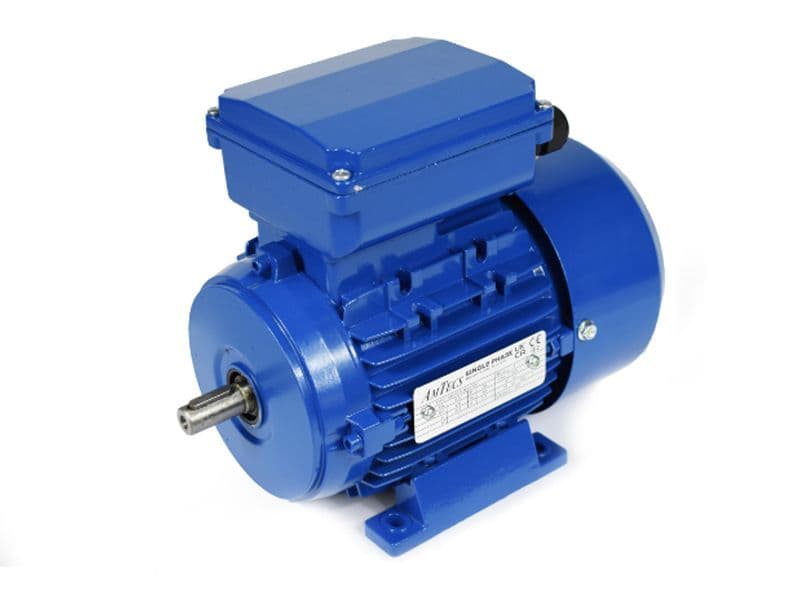

AMAS-R-IE2 Single phase capacitor run motor

This range of aluminium single phase running capacitor multi-mount motors is suitable for many different industrial applications. The running capacitor design is suitable for low starting torque applications such as fans. The multi-mount design enables the feet to be removed or moved to provide left, right or top terminal box configurations.
Lower starting torque 0.3 - 0.7 times the rated torque.

Applications

• Fans
• Pumps
• Food industry

Standard features

• Aluminium Terminal box as standard
• Thermal reset switch
• Industrial single phase series of aluminium housing motors
• Capacitor run
• IP55 protection degree
• Insulation class F, temperature rise 80°C
• Terminal box rotation at 180°
• RAL 5010, blue colour
• Available in 3000rpm (2 pole), 1500rpm (4 pole)
• Mounting IM B3, B5, B14S, B34L, B35, B34S, B34L, B5R
