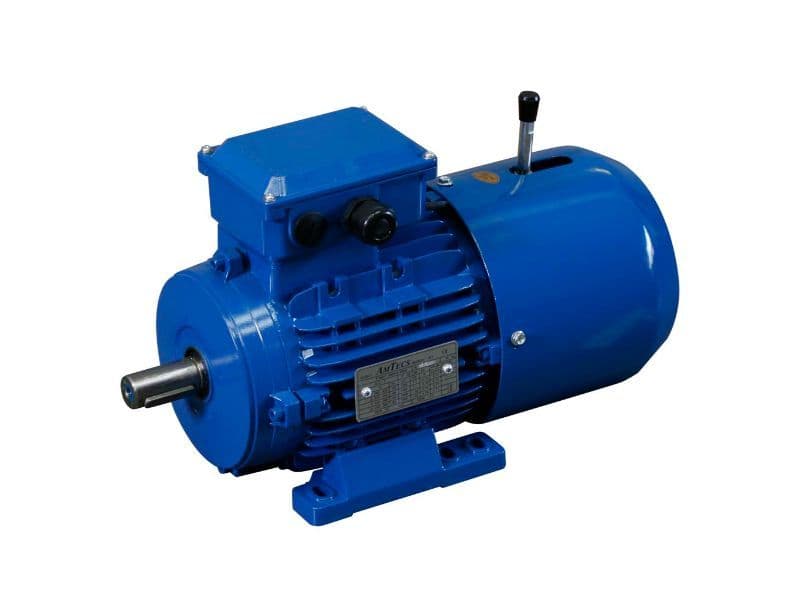

AMAB-IE3 160L4 15kW 4 Pole 400/690V Brake Motor

*Replaces old AMAB 160L4 15kW 4 Pole brake motor*

AMAB-IE3 Aluminium Brake Motors

AmTecs range of brake motors are suitable for many different application including fans, pumps, and conveyors.
The multi-mount design enables the feet to be removed or moved to provide left, right or top terminal box configurations.

Frame sizes IEC 56-160

Applications

Suitable for applications where stopping quickly is required. Such as: machine tools, packaging machines, wood working, construction machinery and gearboxes. (Not suitable for hoist applications).

Standard features

• Industrial series of aluminium housing motors
• IP55 protection degree
• Insulation class F, class B temperature rise
• Removable feet with the possibility of right and left hand side terminal box
• NSK Bearings and Cast-iron drive end shield frame 100 and above
• RAL 5010, blue colour
• Available in 3000rpm (2 pole), 1500rpm (4 pole), 1000rpm (6 pole), 750rpm (8 pole)
• Mounting IM B3, B5, B14S, B34L, B35, B34S, B34L, B5R

Brake Supply voltage

• 230/400V have a 110v dc Brake and half wave rectifier (230v AC Supply).
• 400/690V have a 186v dc Brake and half wave rectifier (400v AC Supply).

From the 1st July 2021 all motors must meet the ECO Design Rule 2019/1781.
Therefore, 0.75kW and above should now be IE3 unless for direct replacement.
