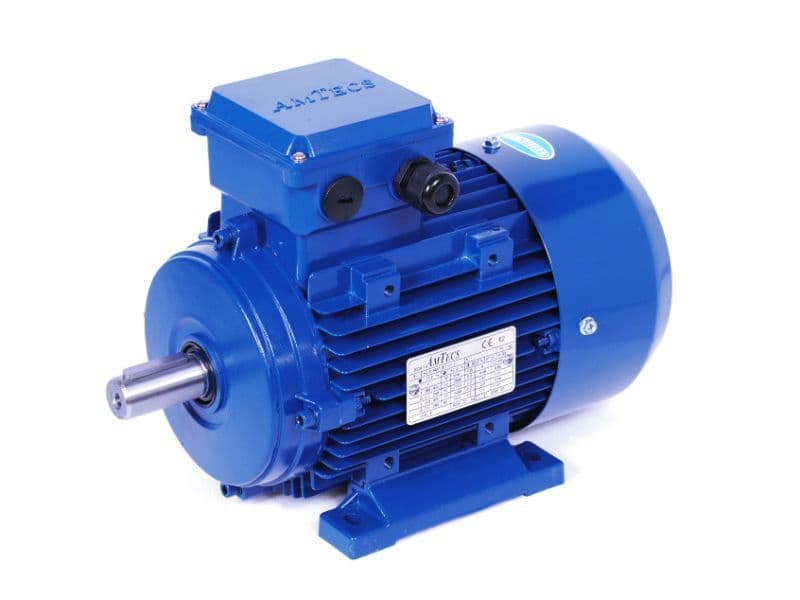

AMA3-IE3 90L4 1.5kW 4 Pole 220/240-380/420V

*Replaces old AMA 90L4 1.5kW 4 Pole motor*

*Replaces old AMA-IE2 90L4 1.5kW 4 Pole motor*

DATA & DIMENSIONS - B3 - B5 - B14 - B14L - B35 - B34 - B34L

AMA3-IE3 Aluminium multi-mount motor

This range of aluminium multi-mount motors are suitable for many different industrial applications, including fans and pumps. The multi-mount design enables the feet to be removed or moved to provide left, right or top terminal box configurations.

IE3 = Premium Efficiency

• Power range 0.75kW - 18.5kW.
• Availiable in 3000rpm (2 pole), 1500rpm (4 pole), 1000rpm (6 pole), 750rpm (8 pole).
• Aluminium three-phase squirrel cage induction motors according to IEC 60034-1.
• Multi-mount design, with removable feet.
• Standard Voltage ranges 220-240/380-420V or 380-420/660-720V, 50Hz.
• Insulation class F, Class B Temperature rise.
• Protection IP55.
• Colour RAL 5010.
• Cast-iron drive end shield frame 100 and above.
• Thermistors as standard.
• Mounting IM B3, B5, B14S, B34L, B35, B34S, B34L, B5R.
• Flange motors B14 small & large available up to and including size IEC 132.
