Product Description

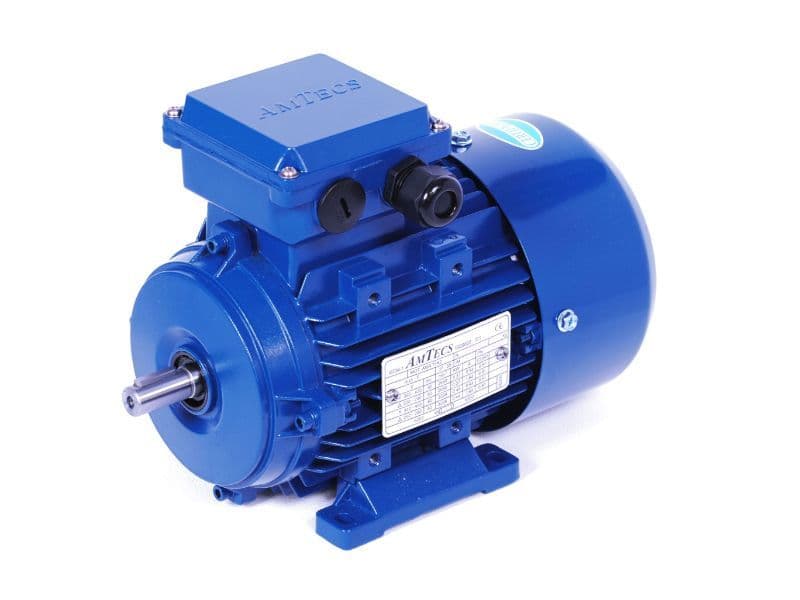

AMA-IE2 80K4 0.55kW 4 Pole 220/240-380/420V

*Replaces old AMA 80K4 0.55kW 4 Pole motor*

DATA & DIMENSIONS - B3 - B5 - B14 - B14L - B35 - B34 - B34L

AMA-IE2 Aluminium multi-mount motor

This range of aluminium IE2 multi-mount motors are suitable for many different industrial applications, including fans and pumps. The multi-mount design enables the feet to be removed or moved to provide left, right or top terminal box configurations.

Frame sizes IEC 56-160

0.12kW to 3kW : 380-420 / 220-240 V Y/Δ 50Hz
4kW to 18.5kW: 660-725 / 380-420 V Y/Δ 50Hz

Applications

  • Fans
  • Pumps
  • Gears
  • Compressors
  • Textiles
  • Food industry

Standard features

  • Thermistors as standard
  • Industrial series of aluminium housing motors
  • IP55 protection degree
  • Insulation class F, class B temperature rise
  • Removable feet with the possibility of right and left hand side terminal box
  • NSK Bearings and Cast-iron drive end shield frame 100 and above
  • RAL 5010, blue colour
  • Available in 3000rpm (2 pole), 1500rpm (4 pole), 1000rpm (6 pole), 750rpm (8 pole)
  • Mounting IM B3, B5, B14S, B34L, B35, B34S

From the 1st July 2021 all motors must meet the ECO Design Rule 2019/1781.
Therefore, IE2 motors 0.75kW and above should now be IE3 unless for direct replacement.

POWER: 0.55kW (0.75HP)
SPEED: 4-Pole (1500 rpm)
MOUNTING: Select Option
FRAME: 80
EFFICIENCY: IE2
VOLTAGE: 230/400V
TYPE: Aluminium

Specifications

Power Rating
0.55kW
Motor Speed (Poles)
1500 RPM - 4 POLE
Shaft Size
19mm Diameter
Frame Size
IEC 80
Energy Efficiency Class
IE2 High Efficiency

Amtecs AMA-IE2 80K4 0.55kW 4 Pole 220/240-380/420V
