AM3-IE3 180L4 22kW 4 Pole 380/420-660/720V

*Replaces old AM1 180L4 22kW 4 Pole motor*

*Replaces old AM1-IE2 180L4 22kW 4 Pole motor*

DATA & DIMENSIONS - B3 - B5 - B35

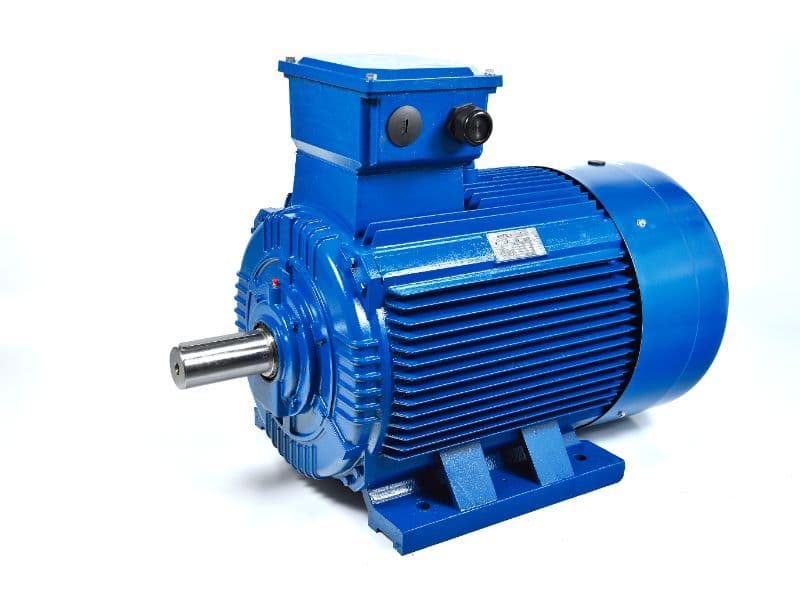

AM3-IE3 Cast Iron Motor

AmTecs range of cast iron IE3 premium efficiency motors (with cast feet for foot mounted designs) is suitable for many different standard and heavy duty industrial applications, including compressors, pump, fans and conveyers. The cast iron design has fixed feet making it's design ideal for high vibration and rugged environments such as quarries as well as standard manufacturing and building service industries. IE3 is AmTecs Premium energy saving motor.

 IE3 = Premium Efficiency

• Power range 0..75kW - 355kW.
• Available in 3000rpm (2 pole), 1500rpm (4 pole), 1000rpm (6 pole), 750rpm (8 pole).
• Cast-Iron three-phase squirrel cage induction motors according to IEC 60034-1.
• Foot mounted with fixed feet.
• Standard Voltage ranges 220-240/380-420V or 380-420/660-720V, 50Hz.
• Insulation class F, Class B Temperature rise.
• Protection IP55.
• Colour RAL 5010.
• Re-greaseable bearings 160 frame and above.
• Thermistors as standard.
• Mounting IM B3, B5, B35.
