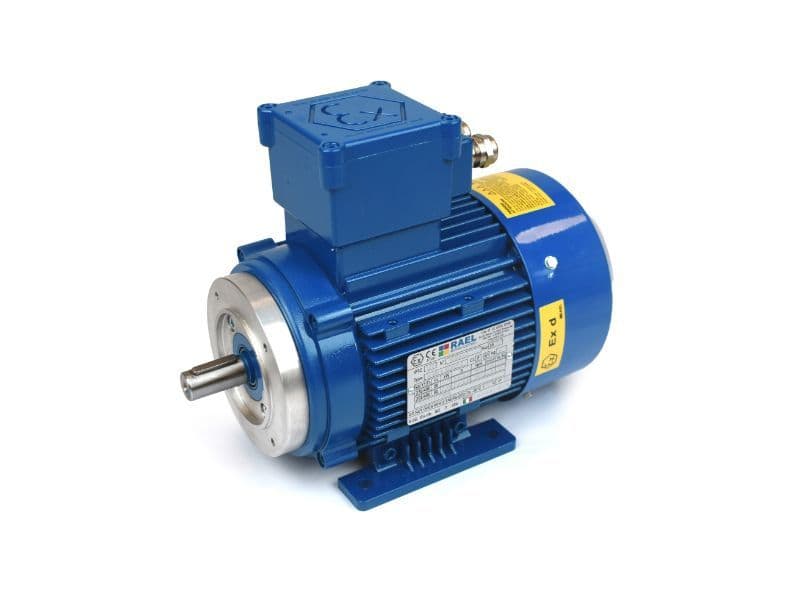

2RL 63B 0.25kW 2P 230/400V 50Hz 2GD Exdbeb IP66 "2RL0003"

DATA & DIMENSIONS:  B3  |  B5  |  B14  |  B35  |  B34

RL Series Explosion proof Motors

Explosion proof motors for surface industries in presence of explosive atmosphere in the form of gas, vapor or dust, relative to category 2 suitable for zone 1 and zone 2 (2G), for zone 21 and 22 (2D).

Frame sizes IEC 56 - 160

0.06kW to 3kW : 380-420 / 220-240 V Y/Δ 50Hz
4kW to 22kW: 660-725 / 380-420 V Y/Δ 50Hz

Motor Marking

• II 2G Ex db IIC T4-T5-T6 Gb Ta:-20°C to 60-50-40°C
• II 2G Ex db eb IIC T4-T5-T6 Gb Ta:-20°C to 60-50-40°C
• II 2D Ex tb IIIC T135°C-100°C-85°C Db IP66 Ta:-20°C to 60-50-40°C

Details

These motors are available in aluminium frames 56-160 in three phase, single phase, double speed and for inverter duty versions.
One of the unique features of these motors is the modularity and versatility of the assemblies (B3, B5, B14, B34,B35 ). Both feet B3 and flanges B5 and B14 can be removed without opening the motor, enabling an easy change of mounting arrangements. The terminal box can be located on all the motor sides and the cable entry / exit can be turned by 360°.

The motors are built according to European standards: EN 60079-0; EN 60079-1; EN 60079-7; EN 60079-31.

Standard features

• Power range 0.06kW - 22kW.
• Available in 3000rpm (2 pole), 1500rpm (4 pole), 1000rpm (6 pole), 750rpm (8 pole).
• Type of protection Ex d, Ex de, Ex t.
• Aluminium three-phase squirrel cage induction motors according to IEC 60034-1.
• Multi-mount design, with removable feet.
• Standard Voltage ranges 220-240/380-420V or 380-420/660-720V, 50Hz.
• Insulation class F, Class B Temperature rise.
• Protection IP55 for zone 1 and zone 2, IP66 for zone 21 and zone 22..
• Colour RAL 5010.
• Thermistors as standard.
• Mounting IM B3, B5, B14S, B35, B34S.
